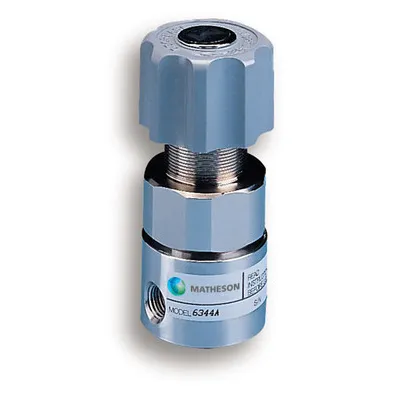

High- purity stainless steel back pressure regulator designed to relieve system overpressure. May be used with non-corrosive or corrosive gases.
• May be used in place of relief valves in many applications requiring high sensitivity and close tolerances on “crack-reseat” pressure relationships
• Used to control upstream pressure
• High-purity 316L stainless steel body
• High-purity 316 stainless steel diaphragm
• Metal to metal seal
• Porous metal filter protects seat from contamination
| Part Number | Max Relief/Back Pressure |
Cylinder Pressure Gauge |
| SEQ6342A | 100 psi | none |
• Body: 316L stainless steel
• Diaphragm: 316 stainless steel
• Bonnet: Stainless steel
• Seat: Kel-F81
• Seals: Metal to metal
• Maximum Pressure Rating: 100 psig (690 kPa)
• Maximum Flow Rate: 185 SCFH (85 SLPM) @ 100 psig
• Flow Capacity (Cv): 0.08
• Porting: 1/4” NPT Female
| Mounting Options | |||
| Mounting Bracket for Single Stage & Line Regulators Two 10-32 screws are needed to mount the back of the regulator to this bracket. |
|||
| Mounting Bracket for Regulators Mounting Nuts are also needed (see below). The regulator knob will have to be removed in order to mount on this bracket. |
|||
| Mounting Nuts These nuts can be used either with the above bracket or for mounting in a panel. |
