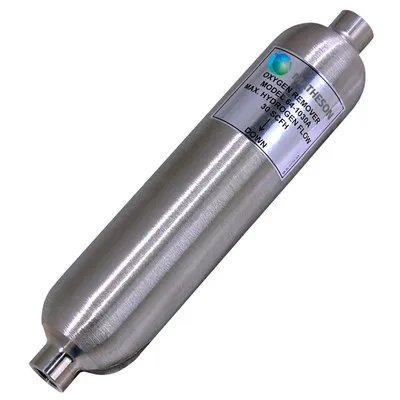

64-1000 Series Purifier for Hydrogen – Removes Oxygen

This Oxygen Removing Purifier removes Oxygen as an impurity from Hydrogen and delivers Hydrogen with less than one ppm of Oxygen. This catalytic combination of Hydrogen and Oxygen is usually accomplished at room temperature and results in the formation of water vapor. This water vapor should also be removed with Model 450B or 460 Purifiers installed on the outlet side of this Purifier. The catalytic material within the Model 64-1000 Series should last indefinitely unless impacted by contaminants (oil, sulfur compounds, lead, iron salts, organic solvents, etc.) Since the operating principle of these purifiers requires an abundance of hydrogen, these units are functional with hydrogen gas only.

Materials of Construction

• Body: Stainless Steel

Specifications

• Maximum Operating Pressure: 1800 psi
• Maximum Allowable Oxygen Level (inlet): 1% by volume
• Maximum Flow Rate: See Chart
• Purity: < 1ppm Oxygen
• Dimensions: See Chart
• Inlet/Outlet: 1/4″ FPT
