Availability: 5 in stock

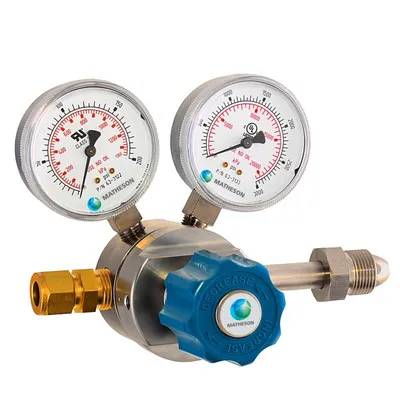

High-purity regulators for use with high flow rate applications.
• Applications requiring a high flow rate, such as purging of large reactor or storage vessels
• High-purity nickel plated brass barstock body
• 316 stainless steel diaphragm
• Panel mountable
• Bonnets are ported and threaded to pipe gases away from the work area
| Part Number* | Max Delivery Pressure |
Delivery Pressure Gauge |
Cylinder Pressure Gauge |
| SEQ3240CGA | 50 psi | 0-100 psi | 0-3000 psi |
| SEQ3241CGA | 100 psi | -30″-0-200 psi | 0-3000 psi |
| SEQ3243CGA | 150 psi | 0-400 psi | 0-3000 psi |
| SEQ3244CGA | 250 psi | 0-400 psi | 0-3000 psi |
*Note: where CGA is replaced by the actual CGA number. Some CGA limitations may apply.
• Body: Nickel plated brass barstock
• Bonnet: 300 series stainless steel
• Diaphragm: 316 stainless steel
• Seat: PCTFE
• Seat Retainer: Nitronic 60
• Seals: PTFE
• Maximum Inlet Pressure: 3000 psi (20,700 kPa)
• Typical Max Flow Rate (100 psi del press): 30 SCFM-N2 (850 SLPM)
• Flow Capacity (Cv): 1.0
• Operating Temperature: -40°F to 140°F (-40°C to 60°C)
• Flow Direction: Right to Left
• Porting Configuration: 2 High, 2 Low
• Inlet/Outlet Ports: 1/2″ NPT Female
• Gauge Ports: 1/4″ NPT Female
• Outlet Connection: 1/2″ Compression fitting
• Bonnet Vent Port: 1/16″ FNPT
| Mounting Options | |||
| Mounting Bracket for Regulators Mounting Nuts are also needed (see below). The regulator knob will have to be removed in order to mount on this bracket. |
|||
| Mounting Nuts These nuts can be used either with the above bracket or for mounting in a panel. |
|||

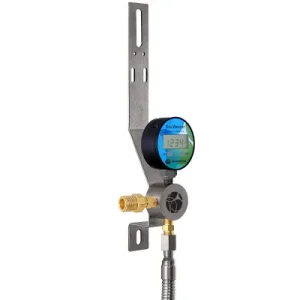

| 53 Series Protocol Station This brass manifold is designed to provide a safe, reliable way of wall-mounting a cylinder regulator. Manifolds are provided a durable stainless steel bracket, stainless steel flex hose (3 ft std.), and a CGA connection with integral check valve. |
