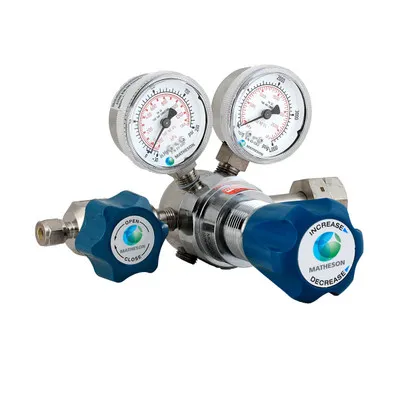

3510A-580-S Series Single-Stage High-Purity Regulator – SS (No outlet valve)

A high purity regulator designed for analytical applications using non-corrosive or semi-corrosive gases.

MODIFIED ASSEMBLY: Standard 3510A-580 regulator, less the outlet valve

Applications

• Supply of carrier gas / detector support gas for a variety of gas chromatography applications
• Supply of calibration standards to on-line process analyzers, emission monitoring systems, etc.

Design Features

• High-purity 316 stainless steel barstock body
• High-purity 316 stainless steel diaphragm
• Metal to metal seals minimize diffusion of contaminants
• 2” inlet and delivery pressure gauges
• Bonnet ported and threaded to pipe gases away from work area
• 1/4” female NPT Outlet
• 580 CGA Inlet
• 10 micron metal filter protects seat from contamination
• Panel mountable, front bonnet and back threaded holes (10-32 UNF)
• Bonnet vent hole size: 1/8” NPTF

Materials of Construction

• Gauges: 316 stainless steel
• Body: 316 stainless steel barstock
• Bonnet: Chrome plated brass barstock
• Diaphragm: 316 stainless steel
• Seat: Teflon
• Seals: Metal to metal

Specifications

• Maximum Inlet Pressure: 3000 psig (20,700 kPa)
• Maximum Flow Rate (At 2000 psig, N2):
Model 3510A: 2400 SCFH (1128 SLPM)

• Flow Capacity (Cv): 0.08
• Operating Temperature: -15°F to 140°F (-26°C to 60°C)
• Porting (Regulator Body): 1/4” NPT Female
• Porting Configuration: 3 High, 3 Low
