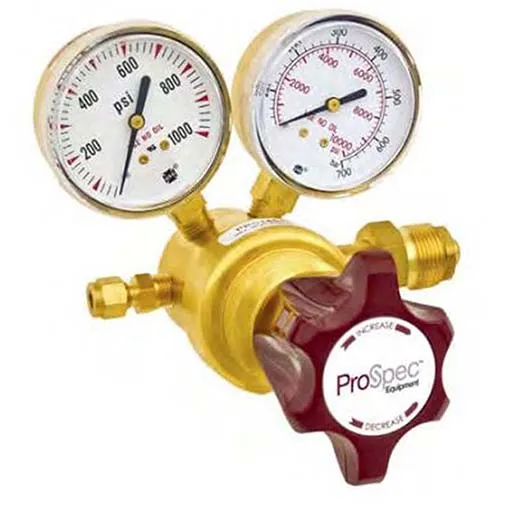

Prostar 145 Series – Special Purpose, Piston Regulator, 350 CGA | 1452-350

Delivery Pressure Ranges: 100-1500 psig, Outlet Gauges: 2000 psig, Inlet Gauges: 7000 psig, CGA: 350

Special Purpose Regulator

The 145 Series is designed for applications requiring inlet pressures up to 6,000 psi. The piston design requires little or no maintenance.

Specifications

• Inlet Pressure 6000 psig
• Temperature Range -40° F to 140° F (-40° C to 60° C)
• Gauges 2-1/2″
• Body Ports 1/4″ FNPT
• CV .08

Materials

• Body Chrome plated brass
• Piston Brass
• Seat Urethane seal PCTFE seat
• Inlet Filter Sintered bronze
