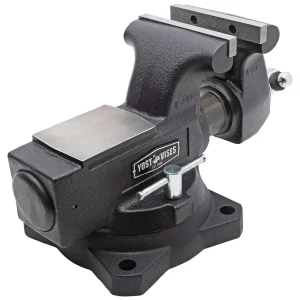

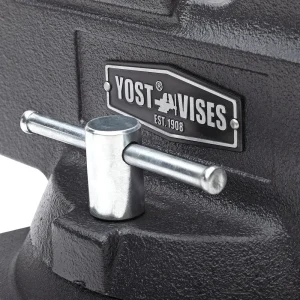

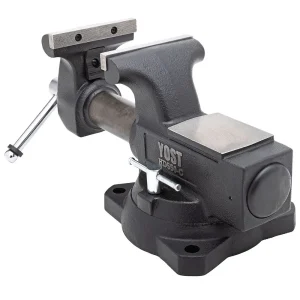

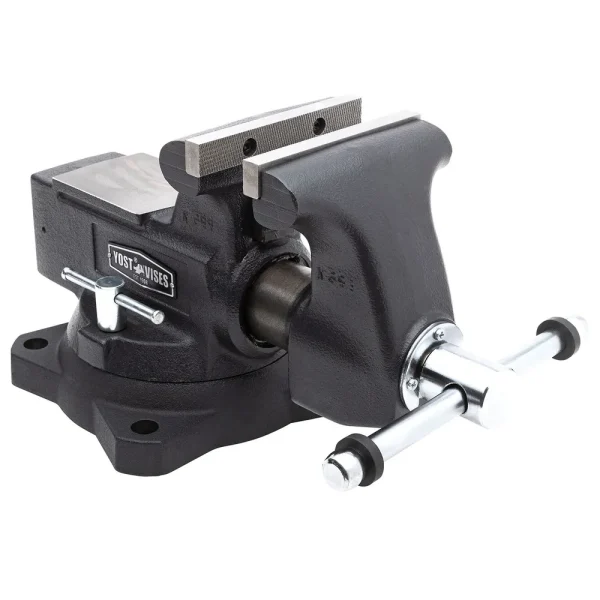

The Yost HD550-C 5.5-Inch Heavy Duty Mechanics Vise is built to handle the toughest jobs with precision and reliability. Designed for serious work, this high-strength mechanic’s vise is constructed from 60,000-psi ductile iron, providing superior durability and strength.
Its oversized casting ensures lasting performance, even under the most demanding conditions. Equipped with a full-length, straight-pull screw, the HD550-C delivers maximum clamping strength, while the sealed back protects the spindle assembly from dirt and debris, extending the lifespan of the tool. The extra-large anvil surface offers ample space for hammering and shaping, making it an essential tool for mechanics and fabricators.
The swivel base features dual lockdowns for maximum stability, allowing you to position the vise securely for any task. The vise comes with replaceable serrated vise jaws and pipe jaws for added versatility, while its maximum clamping force of 8,992 pounds ensures secure grip on a variety of materials.
Meeting or exceeding Federal Specification GGG-V-410A, the Yost HD550-C is backed by a 3-year warranty, offering peace of mind for hobbyists and professionals who rely on quality tools for precision work.
Yost HD550-C 5.5-Inch Heavy Duty Mechanics Vise Features:
Jaw Width: 5.52″
Maximum Jaw Opening: 5.30″
Throat Depth: 3.82″
Pipe Diameter Capacity 0.50″-3.5″
Screw, Nut Thread: Acme thread, 3/4″ – 4 TPI
Handle End Stop Material: Rubber
Maximum Jaw Clamping Force 40 kN (8992 lbs.)
Front Jaw, Back Jaw, Nut, Base, Base Lock Nut Material: QT450-12 Ductile iron (60,000 psi minimum)
Handle, Lockdown Material: Steel
Screw Material: A3 Steel
Replaceable Jaw, Pipe Jaw Material, Hardness: 45 Steel, 45-56 HRC
Pipe Jaws: Replaceable, screw fastened inserts
Swivel Lock Type: Toothed
Vise Weight: 48.5 lbs.
