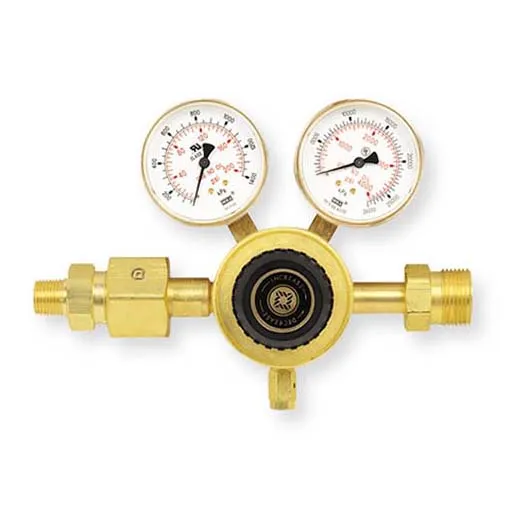

Western RM Gas Regulator – Carbon Dioxide
The RM Series manifold inline cartridge style regulators are “Pressure Compensated” Single Stage design (Oxygen is Two Stage) and are able to deliver stable pressure performance comparable to a two stage design. The unique cartridge design allows for fast, easy replacement of vital internal parts (seat, nozzle, filter, spring, seals, and built in check-relief valve) without having to remove the bonnet. The cartridge can be replaced without costly down time or removal of the regulator from the pipeline.
Features
| Brand | Western Enterprises |
|---|---|
| Body Material | Brass |
| Gas Flow Rate | 960 scfh |
| Gas Service | Carbon Dioxide |
| Inlet Connection | 1-11-1/2 NPS RH(M) |
| Maximum Inlet Pressure | 3000 psi |
| Maximum Outlet Pressure | 160 psi |
| Minimum Outlet Pressure | 20 psi |
| Number of Stages | Single |
| Outlet Connection | 1-11-1/2 NPS RH(F) |
| Product Type | Gas Regulator |
| Diaphragm Material | Neoprene |
| MFG | RM-4-4 |
