Availability: 9 in stock
Professional & Weldskill 24 Series Air Cooled Nozzles offered in 2 Piece, coarse (CT) and fine thread (FN) series, as well as slip-on (A).

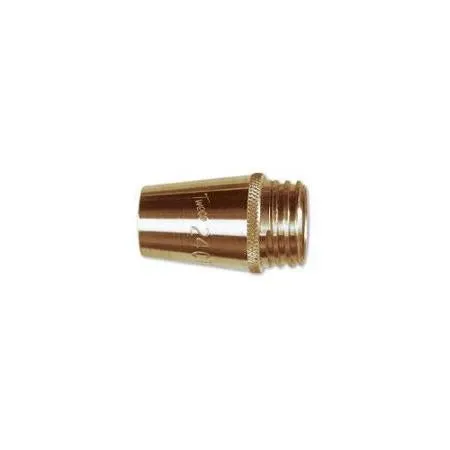

| PART NUMBER | 24FN-62R |
| MODEL | 1240-1723 |
| SERIES | 24FN |
| COOLING | Air |
| INSIDE DIAMETER | 5/8 (15.9 mm) |
| NOZZLE DESIGN | Tapered |
| NOZZLE STYLE | Fine Thread-On |
| NOZZLE/CONTACT TIP RELATIONSHIP | 1/2″ (12.7 mm) |
| OUTSIDE DIAMETER | 0.750″ (19.05 mm) |
| PART NUMBER | MODEL | INSIDE DIAMETER | NOZZLE DESIGN | NOZZLE/CONTACT TIP RELATIONSHIP |
| 24FN-37S | 1240-1704 | 3/8″ (9.5 mm) | Standard Short Stop | 5/32″ (3.97 mm) Tip Recess |
| 24FN-50S | 1240-1714 | 1/2″ (12.7 mm) | Standard Short Stop | 5/32″ (3.97 mm) Tip Recess |
| 24FN-62R | 1240-1723 | 5/8″ (15.9 mm) | Tapered | 1/2″ (12.7 mm) Tip Recess |
| 24FN-62S | 1240-1724 | 5/8″ (15.9 mm) | Standard Short Stop | 5/32″ (3.97 mm) Tip Recess |
| 24FN-75S | 1240-1734 | 3/4″ (19.1 mm) | Standard Short Stop | 5/32″ (3.97 mm) Tip Recess |
