Availability: 9 in stock
Professional & Weldskill 24 Series Air Cooled Nozzles offered in 2 Piece, coarse (CT) and fine thread (FN) series, as well as slip-on (A).

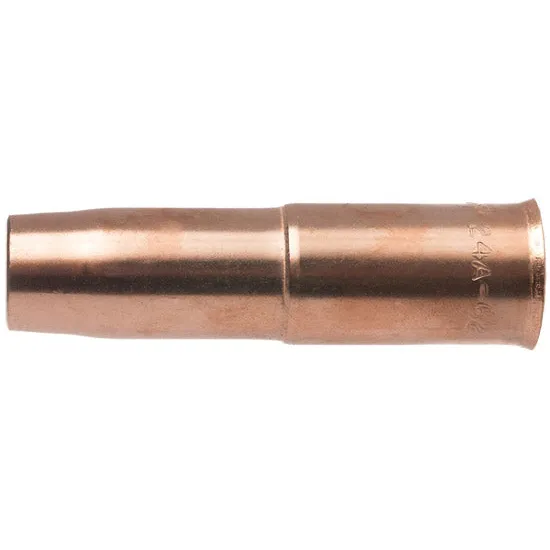

| PART NUMBER | 24AH-62SS |
| MODEL | 1240-1221 |
| SERIES | 24A |
| COOLING | Air |
| INSIDE DIAMETER | 5/8″ (15.9 mm) |
| NOZZLE DESIGN | Heavy Duty Short Stop |
| NOZZLE STYLE | Slip-On |
| NOZZLE/CONTACT TIP RELATIONSHIP | 1/8″ (3.2 mm) Tip Recess |
| OUTSIDE DIAMETER | 0.750″ (19.05 mm) |
| PART NUMBER | MODEL | INSIDE DIAMETER | NOZZLE DESIGN | NOZZLE/CONTACT TIP RELATIONSHIP |
| 24A-37SS | 1240-1101 | 3/8″ (9.5 mm) | Standard Short Stop | 1/8″ (3.2 mm) Tip Recess |
| 24AT-37SS | 1240-1301 | 3/8″ (9.5 mm) | Tapered Short Stop | 1/8″ (3.2 mm) Tip Recess |
| 24A-50 | 1240-1110 | 1/2″ (12.7 mm) | Standard | Adjustable Tip Recess – Tip Protruding |
| 24A-50SS | 1240-1111 | 1/2″ (12.7 mm) | Standard Short Stop | 1/8″ (3.2 mm) Tip Recess |
| 24AH-50 | 1240-1210 | 1/2″ (12.7 mm) | Standard Heavy Duty | Adjustable Tip Recess – Tip Protruding |
| 24AH-50SS | 1240-1211 | 1/2″ (12.7 mm) | Heavy Duty Short Stop | 1/8″ (3.2 mm) Tip Recess |
| 24A-62 | 1240-1120 | 5/8″ (15.9 mm) | Standard | Adjustable Tip Recess – Tip Protruding |
| 24A-62SS | 1240-1121 | 5/8″ (15.9 mm) | Standard Short Stop | 1/8″ (3.2 mm) Tip Recess |
| 24AH-62 | 1240-1220 | 5/8″ (15.9 mm) | Standard Heavy Duty | Adjustable Tip Recess – Tip Protruding |
| 24AH-62SS | 1240-1221 | 5/8″ (15.9 mm) | Heavy Duty Short Stop | 1/8″ (3.2 mm) Tip Recess |
| 24A-75 | 1240-1130 | 3/4″ (19.1 mm) | Standard | Adjustable Tip Recess – Tip Protruding |
| 24A-75SS | 1240-1131 | 3/4″ (19.1 mm) | Standard Short Stop | 1/8″ (3.2 mm) Tip Recess |
| 24AH-75 | 1240-1230 | 3/4″ (19.1 mm) | Standard Heavy Duty | Adjustable Tip Recess – Tip Protruding |
| 24AH-75SS | 1240-1231 | 3/4″ (19.1 mm) | Heavy Duty Short Stop | 1/8″ (3.2 mm) Tip Recess |
