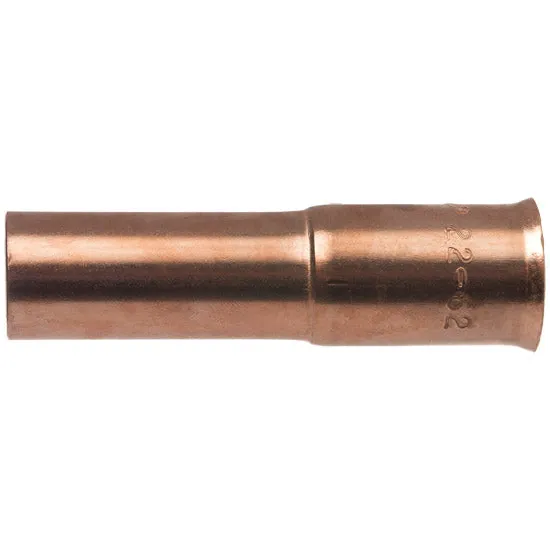

Professional & Weldskill 22 Series Air Cooled Slip-On Nozzles are self insulated and offered in formed or HD 3-piece designs. Formed nozzles come in standard or standard short stop.
| PART NUMBER | 22-50 |
| MODEL | 1220-1110 |
| SERIES | 22 |
| COOLING | Air |
| INSIDE DIAMETER | 1/2″ (12.7 mm) |
| NOZZLE DESIGN | Standard |
| NOZZLE STYLE | Slip-On |
| NOZZLE/CONTACT TIP RELATIONSHIP | Adjustable Tip Recess – Tip Protruding |
| OUTSIDE DIAMETER | 0.750″ (19.05 mm) |
| PART NUMBER | MODEL | INSIDE DIAMETER | NOZZLE DESIGN | NOZZLE/CONTACT TIP RELATIONSHIP |
| 22-37 | 1220-1100 | 3/8″ (9.5 mm) | Standard | Adjustable Tip Recess – Tip Protruding |
| 22-37SS | 1220-1101 | 3/8″ (9.5 mm) | Standard Short Stop | Flush to 1/8″ (3.2 mm) Tip Recess |
| 22T-37SS | 1220-1301 | 3/8″ (9.5 mm) | Tapered Short Stop | Flush to 1/8″ (3.2 mm) Tip Recess |
| 22-50 | 1220-1110 | 1/2″ (12.7 mm) | Standard | Adjustable Tip Recess – Tip Protruding |
| 22-50SS | 1220-1111 | 1/2″ (12.7 mm) | Standard Short Stop | Flush to 1/8″ (3.2 mm) Tip Recess |
| 22-62 | 1220-1120 | 5/8″ (15.9 mm) | Standard | Adjustable Tip Recess – Tip Protruding |
| 22-62SS | 1220-1121 | 5/8″ (15.9 mm) | Standard Short Stop | Flush to 1/8″ (3.2 mm) Tip Recess |
