Availability: 9 in stock

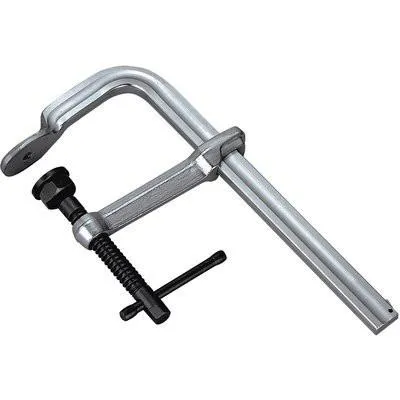

All Strong Hand Tools® Utility Clamps are made of high quality heat treated steel and nickel/chrome plated for strength and durability.
Specifications
| Part No. | Capacity | Throat Depth | Clamping Pressure | Pads | Rail Size | Tapped Hole | Weight |
|---|---|---|---|---|---|---|---|
| UD45-C3 (UD45M-C3) |
4-1/2″ (114 mm) |
3-1/4″ (83 mm) |
500 LBS (227 kg) |
Standard | 5/8 x 5/16″ (16 x 8 mm) |
5/16-18 (M8) |
1.3 LBS (0.6 kg) |
| UD65-C3 (UD65M-C3) |
6-1/2″ (165 mm) |
3-1/4″ (83 mm) |
500 LBS (227 kg) |
Standard | 5/8 x 5/16″ (16 x 8 mm) |
5/16-18 (M8) |
1.6 LBS (0.7 kg) |
| UF65-C3 (UF65M-C3) |
6-1/2″ (165 mm) |
4-3/4″ (120 mm) |
1,000 LBS (454 kg) |
Standard | 7/8 x 7/16″ (22 x 11 mm) |
3/8-16 (M10) |
2.9 LBS (1.3 kg) |
| UG85-C3 (UG85M-C3) |
8-1/2″ (216 mm) |
4-3/4″ (120 mm) |
1,200 LBS (544 kg) |
Standard | 1 x 15/32″ (25 x 12 mm) |
3/8-16 (M10) |
4.1 LBS (1.9 kg) |
| UG125-C3 (UG125M-C3) |
12-1/2″ (318 mm) |
4-3/4″ (120 mm) |
1,200 LBS (544 kg) |
Standard | 1 x 15/32″ (25 x 12 mm) |
3/8-16 (M10) |
4.5 LBS (2.1 kg) |
| UG1257-C3 (UG1257M-C3) |
12-1/2″ (318 mm) |
7″ *Deep Throat (180 mm) |
800 LBS (363 kg) |
Standard | 1 x 15/32″ (25 x 12 mm) |
3/8-16 (M10) |
6.5 LBS (2.9 kg) |
| UM85P-C3 (UM85PM-C3) |
8-1/2″ (216 mm) |
5-1/2″ (140 mm) |
2,400 LBS (1,089 kg) |
Standard | 1-3/16 x 9/16″ (30 x 14 mm) |
3/8-16 (M10) |
6.6 LBS (3.0 kg) |
| UM105P-C3 (UM105PM-C3) |
10-1/2″ (267 mm) |
5-1/2″ (140 mm) |
2,400 LBS (1,089 kg) |
Standard | 1-3/16 x 9/16″ (30 x 14 mm) |
3/8-16 (M10) |
7.4 LBS (3.4 kg) |
| UM125-C3 (UM125M-C3) |
12-1/2″ (318 mm) |
5-1/2″ (140 mm) |
2,400 LBS (1,089 kg) |
Heavy Duty | 1-3/16 x 9/16″ (30 x 14 mm) |
3/8-16 (M10) |
7.6 LBS (3.5 kg) |
| UM165-C3 (UM165M-C3) |
16-1/2″ (419 mm) |
5-1/2″ (140 mm) |
2,400 LBS (1,089 kg) |
Heavy Duty | 1-3/16 x 9/16″ (30 x 14 mm) |
3/8-16 (M10) |
8.7 LBS (4.0 kg) |
| UM205-C3 (UM205M-C3) |
20-1/2″ (521 mm) |
5-1/2″ (140 mm) |
2,400 LBS (1,089 kg) |
Heavy Duty | 1-3/16 x 9/16″ (30 x 14 mm) |
3/8-16 (M10) |
9.8 LBS (4.5 kg) |
| UP205-C3 (UP205M-C3) |
20-1/2″ (521 mm) |
7″ *Deep Throat (180 mm) |
4,800 LBS (2,177 kg) |
Heavy Duty | 1-9/16 x 3/4″ (40 x 19 mm) |
3/8-16 (M10) |
16.1 LBS (7.3 kg) |
