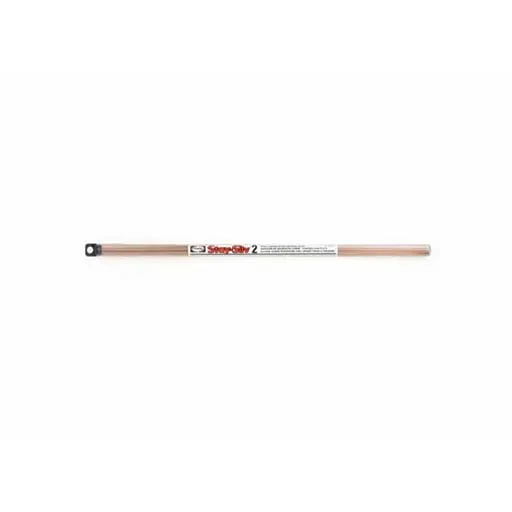

STAY-SILV 2 Brazing Alloy Rod – 0.05 x 1/8 in – 20 in
STAY-SILV 2 phos-copper brazing filler metal is a medium temperature range alloy for brazing copper, and copper-to-brass. The addition of silver provides an 1190°F solidus that widens the melting range compared to Harris. STAY-SILV 2 is useful for applications with clearances of 0.002″ – 0.005″ (0.05 mm – 0.13 mm). Conforms to the EU Reach & RoHS directive.
Features
Stay-Silv 2 brazing filler metal is a medium temperature range alloy for brazing copper, and copper-to-brass
Economical, low silver alloy, designed to broaden the melting range of Harris 0
The addition of silver provides an 1190°F solidus, widening the melting range compared to Harris 0
Useful for applications with joint clearances of 0002″ – 0005″ (005 mm – 013 mm)
Proved useful in some specific applications where mechanical properties are less critical
Corrosion resistance is generally similar to copper base metal, but phosphorus containing alloys, including Stay-Silv 2, should not be used if the braze is exposed to sulfur or sulfur compounds in service
For copper-to-copper and copper-to-brass (using Stay-Silv” white brazing flux) applications
Conforms to the EU Reach & RoHS directive
