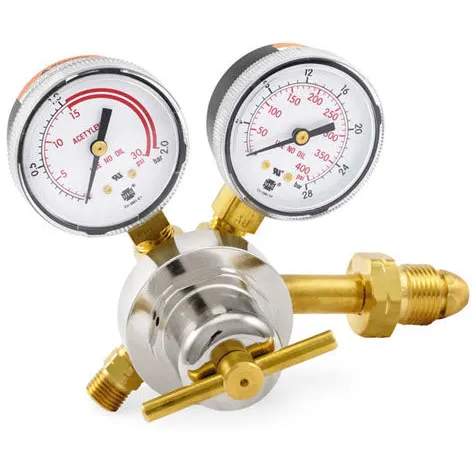

Smith Acetylene Regulator 30-15-510

Smith® Acetylene Regulator 30-15-510

Smith® 30-15-510 Acetylene Regulator is a medium duty, single stage industrial gas regulator with 15 PSIG max outlet pressure. It is excellent for use in the most common gas cutting, heating and welding operations where acetylene is the fuel gas. The 30 series regulator is built to be extremely rugged, featuring a nickel-plated bonnet, shatter resistant 2 inch gauges and Sure Seat filtered seat. Smith’s Sure Seat technology extends regulator life by preventing external contaminants from reaching the pressure seat area.

The 30-15-510 comes with Smith’s True Blue® 3 year warranty and is made in the USA.

Features

• Sure-Seat filtered high-pressure seat assembly extends regulator life by preventing contamination from entering the seating area.
• Neoprene Composite Diaphragm – Highly durable neoprene composite diaphragm offers precise adjustment of outlet pressure and extended service life.
• Color-Coded Labels – Identifies supply performance capabilities, easy gas service identification and technical information.
• Nickel-Plated Bonnet – The nickel-plated bonnet, along with brass body, protects against corrosion.
• Shatter-Resistant Gauge Lenses – 2.0 inch corrosion-resistant polished brass gauges with shatter-resistant polycarbonate lenses.
• External Relief Valve – Protects regulator from damage do to inadvertent high-pressure surge. Relief valve will release excessive pressure and automatically reset.

  NOTE: If your acetylene tank has female valve threads, you should choose this CGA 510 male regulator.
