Availability: 8 in stock

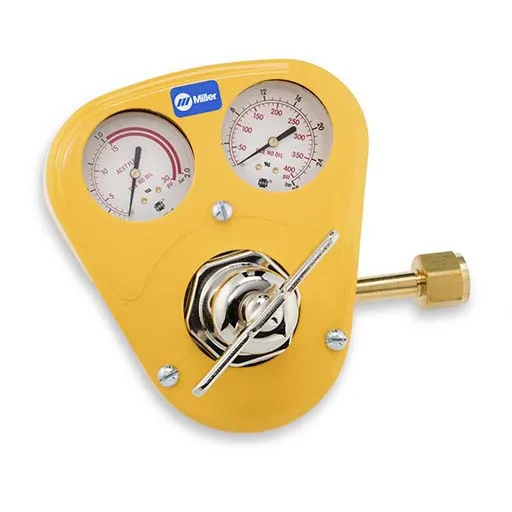

Series 40 Gas Regulator – 15 psi – CGA-510
Series 40 Heavy-Duty single-stage regulator regulators are extremely durable and contain our exclusive Sure Seat filtered seat technology for extended seat and regulator life in the most demanding industrial applications. They feature a stainless steel diaphragm which allows for use with liquid gases, all brass construction which will stand up to corrosive atmospheres and 2.5-inch (64 mm) brass case gauges.
Features:
External Relief Valve
Protects regulator from damage do to inadvertent high-pressure surge. Relief valve will release excessive pressure and automatically reset.
Sure-Seat filtered high-pressure seat assembly
Series 30 single-stage regulators are extremely durable and contain our exclusive Sure Seat filtered seat technology. Filtered seats prevent contamination from entering the seating area, reducing repair costs and downtime
Nickel-Plated Bonnet
The nickel-plated bonnet, along with brass body, protects against corrosion.
Shatter-Resistant Gauge Lenses
2.0 inch corrosion-resistant polished brass gauges with shatter-resistant polycarbonate lenses.
Color-Coded Labels
Identifies supply performance capabilities, easy gas service identification and technical information.
Stainless Steel Regulator Diaphragm
Resists corrosion, leaking and freeze-ups for extended service life.
| Brand | Smith Equipment Co. |
|---|---|
| Body Material | Brass |
| Gas Service | Acetylene |
| Inlet Connection | CGA-510 |
| Maximum Inlet Pressure | 400 psi |
| Maximum Outlet Pressure | 15 psi |
| Number of Stages | Single |
| Outlet Connection | 9/16-18 LH |
| Product Type | Gas Regulator |
| Diaphragm Material | Stainless Steel |
| MFG | 40-15-510 |
