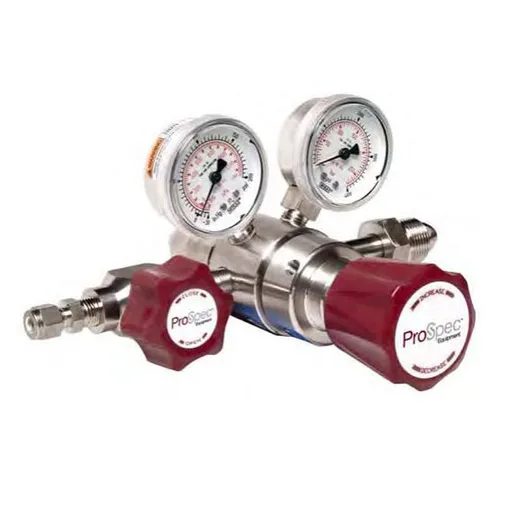

Prostar High Purity 3032 Regulator, CGA: 580 | 30322391580

Max inlet pressure: 4000 psig, Outlet pressure: 50 psig, Outlet assembly: Diaphragm Valve 1/4″ FNPT, CGA: 580

Dual Stage 316 Stainless Steel Barstock Body, Four-Port Configuration, 316 Stainless Steel Diaphragm

The 3032 Series regulators are intended for primary pressure control of high purity and corrosive gases. It is recommended for applications requiring constant delivery pressure control, regardless of supply pressure.

Typical Applications

• EPA Protocol gases
• Gas and liquid chromatography FID, GC, HID, PID, FPO, RD, ECD
• Ultra high purity carrier gases
• Zero, span, and calibration gases
• High purity chamber pressurization
• Petro/Chemical Industry
• Purge gases
• Laboratory analysis

Features and Benefits

• 316 Stainless Steel Barstock Body Enhanced corrosion resistance
• Front Panel Mountable Easy Installation
• 10 Micron Filtration Failsafe seat performance
• Outlet Pressure Ranges 0-15 to 0-250 psig Broad range of applications
• 316 Stainless Steel Diaphragm No inboard diffusion
• Low Wetted Volume Minimal purge requirements
• Convoluted Diaphragm Smooth pressure transition

Specifications

• Maximum Inlet Pressure 3000 psig (210 bar)
• Temperature Range -40° F to 165° F (-40° C to 74° C)
• Gauges 2″ diameter stainless steel
• Ports 1/4″ FNPT
• Helium Leak Integrity 1 x 10^-8 scc/sec
• CV .05
• Weight 4.8lb (2.2 kg)

Materials

• Body 316 stainless steel barstock
• Bonnet 316 stainless steel barstock
• Seat First Stage – Teflon, Second Stage – PTFE
• Filter 10 micron 316 stainless steel
• Diaphragm 316 stainless steel
• Internal Seals Teflon
