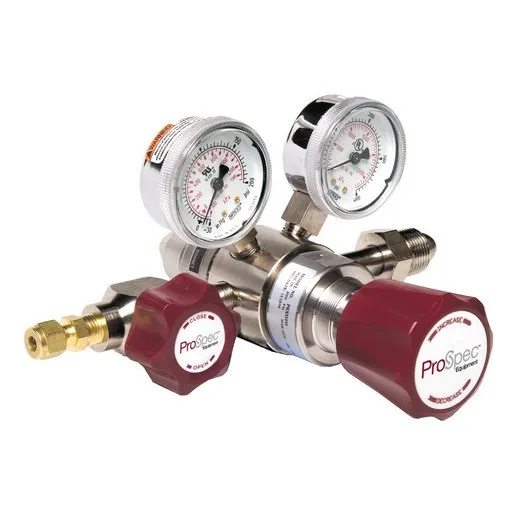

Prostar High Purity 3013 Series Regulator, CGA: 540 | 30131331540

Max inlet pressure: 4000 psig, Outlet pressure: 15 psig, Outlet assembly: Diaphragm Valve 1/4″ Tube Fitting, CGA: 540

Dual Stage Nickel-Plated Brass Barstock Body, Four-Port Configuration, Monel Diaphragm

The 3013 Series regulators are intended for primary pressure control of oxygen, high purity gases. It is recommended for applications requiring constant delivery pressure control, regardless of supply pressure. It has been designed using only materials compatible for use in O₂ service.

Typical Applications

• Gas and liquid chromatography FID, GC, HID, PID, FPO, RD, ECD
• Ultra high purity carrier gases
• Zero, span, and calibration gases
• Petro/Chemical industry
• Purge gases
• Laboratory analysis

Features and Benefits

• Nickel-Plated Brass Barstock Body Controlled surface integrity
• Front Panel Mountable Easy installation
• 10 Micron Filtration
• Outlet Pressure Ranges 0-15 to 0-250 psig Broad range of applications
• Monel Diaphragm No ignition source for higher flows
• Low Wetted Volume Minimal purge requirements
• Convoluted Diaphragm Smooth pressure transition

Specifications

• Maximum Inlet Pressure 3000 psig (210 bar)
• Temperature Range -40° F to 165° F (-40° C to 74° C)
• Gauges 2″ diameter chrome-plated brass
• Ports 1/4″ FNPT
• Helium Leak Integrity 1 x 10⁸ scc/sec
• CV .05
• Weight 4.8lb (2.2 kg)

Materials

• Body Nickel-plated brass barstock
• Bonnet Nickel-plated brass barstock
• Seat First Stage – Teflon; Second Stage – PTFE
• Filter 10 micron, sintered bronze
• Diaphragm Monel
• Internal Seals Teflon
