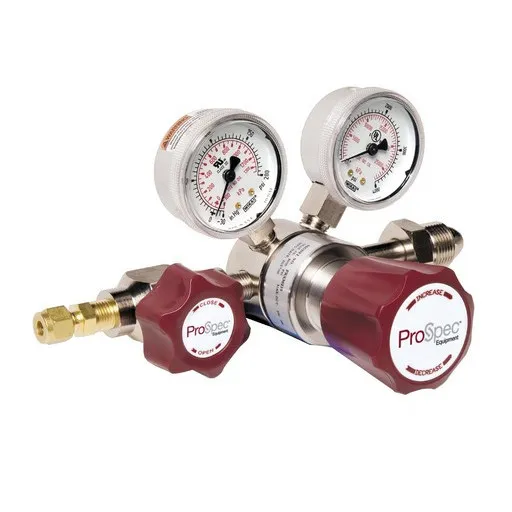

Prostar High Purity 3002 Series Regulator, CGA: 296 | 30022331296

Max inlet pressure: 4000 psig, Outlet pressure: 50 psig, Outlet assembly: Diaphragm Valve 1/4″ Tube Fitting, CGA: 296

Single Stage Nickel-Plated Brass Barstock Body, Four-Port Configuration, 316 Stainless Steel Diaphragm

The 3002 Series regulators are intended for primary pressure control of non-corrosive, high purity or liquefied gases. It is recommended for applications where minor fluctuations in outlet pressure due to diminishing inlet supply can be tolerated.

Typical Applications

• Gas and liquid chromatography
• High purity carrier gases
• Zero, span, and calibration gases
• High purity chamber pressurization
• Liquefied hydrocarbon gas control
• Control for cryogenic gases

Features and Benefits

• Nickel-Plated Brass Barstock Body Controlled surface integrity
• Front and Rear Panel Mountable Versatile system configuration; Front panel mount; Base mount 10-32 UNF (2)
• Outlet Pressure Ranges 0-15 to 0-500 psig Broad range of applications
• 316 Stainless Steel Diaphragm No inboard diffusion
• Low Wetted Volume Minimal purge requirements
• Convoluted Diaphragm Smooth pressure transition

Specifications

• Maximum Inlet Pressure 3000 psig (210 bar)
• Temperature Range -40° F to 165° F (-40° C to 74° C)
• Gauges 2″ diameter chrome-plated brass
• Ports 1/4″ FNPT
• Helium Leak Integrity 1 x 10^-8 scc/sec
• CV 0.05
• Weight 3.2lb (1.5 kg)

Materials

• Body Nickel-plated brass barstock
• Bonnet Nickel-plated brass barstock
• Seat PFA Teflon
• Filter 10 micron sintered bronze
• Diaphragm 316 stainless steel
• Internal Seals Teflon
