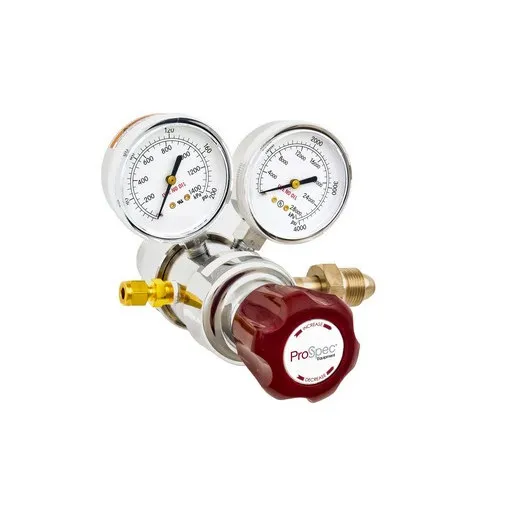

Prostar General Purpose 1009 Series Regulator, CGA: 320 | 10097504320

Max inlet pressure: 4000 psig, Outlet pressure: 40 psig, Outlet assembly: 1/4″ tube fitting, CGA: 320

Dual Stage Barstock Body, Five-Port Configuration, Teflon-Coated

The 1009 Series regulators are intended for pressure control of general purpose laboratory gases with applications requiring constant delivery pressure, regardless of supply pressure.

Typical Applications

• Purging
• Pressure testing
• Blanketing
• Chamber pressurization
• Liquefied hydrocarbon gas control
• Control for cryogenic gases

Features and Benefits

• Brass Forged Body Economical high purity design
• 10 Micron Filtration Failsafe performance
• Pressure Ranges 0-15 to 0-200 psig Broad range of applications
• Neoprene Diaphragm Sensitive to downstream conditions
• Forged Brass Body Durable, long-lasting construction
• High Flow Capacity Supply multiple use locations

Specifications

• Maximum Inlet Pressure 3000 psig (210 bar)
• Temperature Range -40° F to 140° F (-40° C to 60° C)
• Gauges 2-1/2″ diameter chrome-plated brass
• Ports 1/4″ FNPT
• Helium Leak Integrity 1 x 10^-8 scc/sec
• CV .17 (single stage)
• Weight 4.6 lb (2.1 kg) – dual stage

Materials

• Body Chrome plated forged brass
• Bonnet Chrome plated die cast zinc
• Seat PTFE
• Filter 10 micron, sintered bronze
• Diaphragm Neoprene
• Internal Seals PTFE
