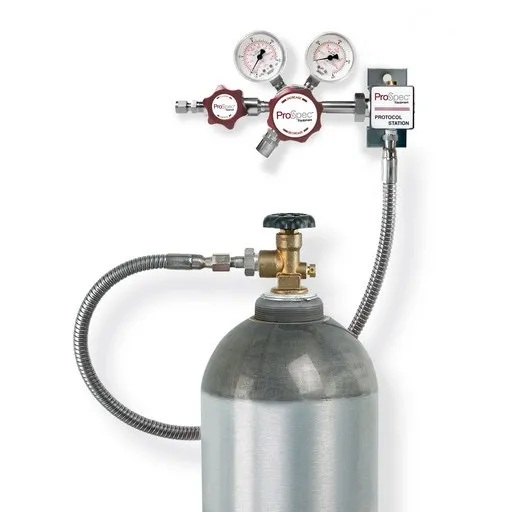

Prostar 3012 Regulator with 5029 Proto | 30122302580M

3012 Regulator with 5029 Protocol Station, 580 CGA

Max inlet pressure: 4000 psig, Dual stage, Outlet pressure: 50 psig, Outlet assembly: 1/4″ FNPT Port, CGA: 580

The 3012 Series regulators are intended for primary pressure control of non-corrosive, high purity or liquefied gases. It is recommended for applications requiring constant delivery pressure control, regardless of supply pressure.

Typical Applications

• EPA Protocol gases
• Gas and liquid chromatography FID, GC, HID, PID, FPO, RD, ECD
• Ultra high purity carrier gases
• Zero, span, and calibration gases
• High purity chamber pressurization
• Petro/Chemical Industry
• Purge gases
• Laboratory analysis

Features and Benefits

• Nickel-Plated Brass Barstock Body Controlled surface integrity
• Front Panel Mountable Easy Installation
• 10 Micron Filtration
• Outlet Pressure Ranges 0-15 to 0-250 psig Broad range of applications
• 316 Stainless Steel Diaphragm No inboard diffusion
• Low Wetted Volume Minimal purge requirements
• Convoluted Diaphragm Smooth pressure transition

Specifications

• Maximum Inlet Pressure 3000 psig (210 bar)
• Temperature Range -40° F to 165° F (-40° C to 74° C)
• Gauges 2″ diameter chrome-plated brass
• Ports 1/4″ FNPT
• Helium Leak Integrity 1 x 10^-8 scc/sec
• Cv .05
• Weight 4.8 lb (2.2 kg)

5029 Protocol Station

The 5029 Series Protocol Station is a regulator option designed for the convenient wall mounting of any ProSpec regulator. Wall mounting of a regulator provides ease of use, helps prevent regulator damage and helps to improve safety. The 5029 Series Protocol Station is available in brass or 316 stainless steel construction as specified by the regulator series. This option comes complete with a 3 foot long flexible all stainless steel pigtail with armor casing. The CGA connection on the pigtail has an integral check valve in the gland to help prevent internal contamination during cylinder changeout. Should purging be desired, the gas block comes with a plugged port which can be removed and replaced with a diaphragm valve.
