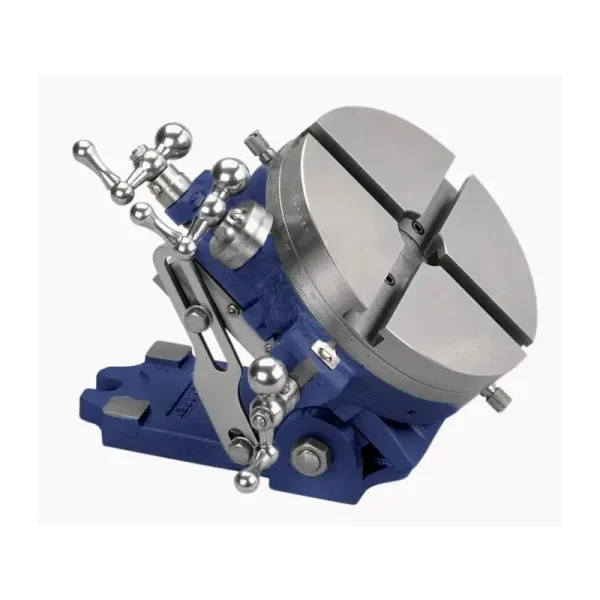

Palmgren Rotary Cross Slide Table W/Angle 8In. 9632804

These remarkably precise tilting rotary tables provide all the combination of movements and positioning necessary to add increased versatility on drill presses, milling machines, surface grinders, or a layout table. Rotary indexing, lateral and transverse cross feed, and graduated angle settings all in one table.

• Accurately position work on the “X” and “Y” axis, as well as 360° table rotation
• Precision ground table top to 0.001 in. total indicator reading
• A 5/8 in. keyway and mounting lugs are provided for locating and accurate, secure mounting
• Smooth worm gear drive provides positive rotary feed
• Balanced ball crank feed handles do not exceed below the base to eliminate interference with the machine table
• 4 in. cross slide travel
• Cross slide dials are calibrated in 0.001 in. increments
• Rotary dials are graduated in 3 minute increments and 1 minute increment on the vernier
• Angular inclination from 0° horizontal to 90° vertical
• Angular position is indicated in 1° increments and locked via 4 bolts and 2 side plates
