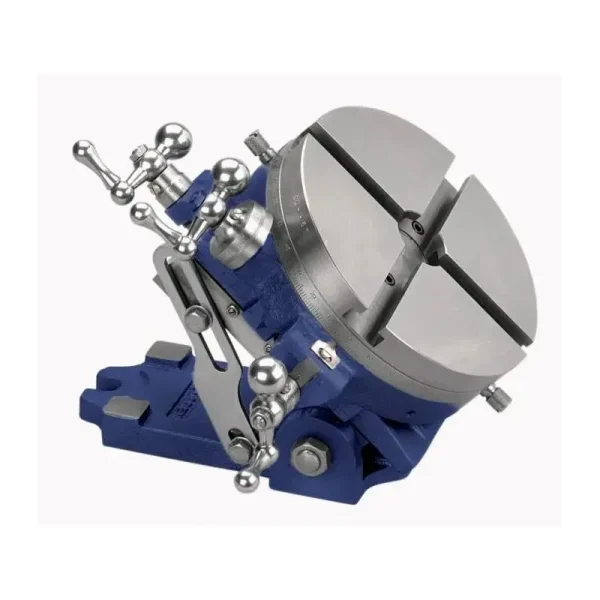

Palmgren Rotary Cross Slide Table W/Angle 10In. 9634103

These remarkably precise tilting rotary tables provide all the combination of movements and positioning necessary to add increased versatility on drill presses, milling machines, surface grinders, or a layout table. Rotary indexing, lateral and transverse cross feed, and graduated angle settings all in one table.

• Accurately position work on the X and Y axis as well as 360 degree table rotation
• Cross slide dials are calibrated in 0.001 in increments and provide 4 in cross slide travel
• Angular inclination from 0 degree horizontal to 90 degree vertical
• Angular position is indicated in 1 degree increments and locked via 4 bolts and 2 side plates
• Rotary dials are graduated in 3 minute increments and 1 minute increments on the vernier
• A 5/8 in keyway and mounting lugs are provided for secure mounting
