Availability: 10 in stock

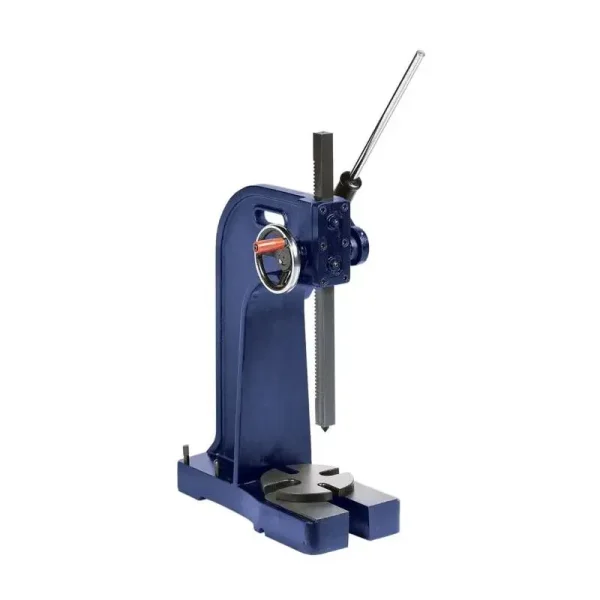

The arm provides optimal leverage position with consistent application of force. In addition, it has more clearance over the table for broaching or pressing large items. It is counterweighted for rapid handle return. Removable machined steel anvil has four slot positions. A lockable adjusting screw accurately limits the depth of the ram stroke. The steel ram is reversible with one end solid and the other end with a hole and magnet to hold bits and tools.
| Anvil Diameter | 6/3/2004 |
|---|---|
| Base Dimension | 10 in. x 21-1/2 in. |
| Country Of Origin | CN |
| Lever Ratio | 38.6:1 |
| Max. Work Height | 16-1/8 in. |
| Ram Dimensions | 1-1/4 in. x 1-1/4 in. |
| Model Number | RP30 |
| Pressure (Tons) | 3 |
| Press Type | Arbor Presses |
| Ram Hole Dia. | 1/2 in. |
