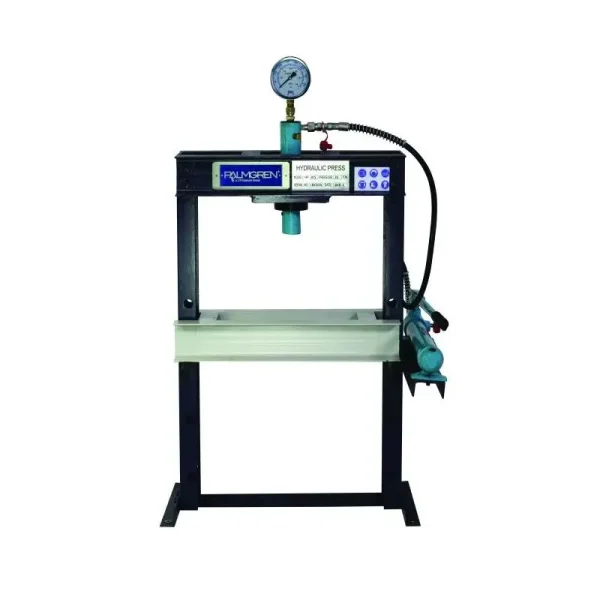

Palmgren’s Hand Operated H-Frame Press 10-ton press is constructed from heavy duty steel plate that is welded together. The combination of rigid construction and industrial grade hydraulics make Palmgren’s H-Frame presses the ultimate solution. These presses are for the serious fabrication and machine shop owner who demands only the best operational quality.
| Capacity | 19.5 in. x 11.81in. |
|---|---|
| Capacity Over Table (Inches) | 11.8 |
| Country Of Origin | CN |
| Cylinder (Fixed Or Dynamic) | FIXED |
| Cylinder Type | Single Action |
| Diameter Of Work (Inches) | 19 x 40 |
| Frame Capacity | 10 TONS |
| H-Frame Press Type | Manual Pump |
| Largest Arbor Extension | 6.3 |
| Leverage Radio | 1000/1 |
| Max. Distance Ram To Table | 19.5in. |
| Max Pressure | 10 Ton |
| Max. Work Diameter | 19in. x 40in. |
| Ram Dimensions | 6.3 |
| Minimum Work Diameter | 19 x 0.04 |
| Overall Dimensions (LxWxH) | 23in. x 17in. x 60in. |
| Pressure (Tons) | 10 |
| Press Type | H-frame Presses |
| Pump Type | MANUAL |
| Ram Bore (Inches) | 1.5 |
| Ram Diameter | 1.5 |
| Ram Size | 6.3 |
| Reservoir Capacity | 2L |
| Table Weight | 88 |
| Warranty | 3 Year |
| Working Height (Inch) | 8.30 |
| Working Width (Inch) | 19.5 |
| UPC | 726896616117 |
| Unit Of Measure | Each |
| Product Height (In) | 60 |
| Product Width (In) | 17 |
| Product Weight (Lbs) | 130 |
