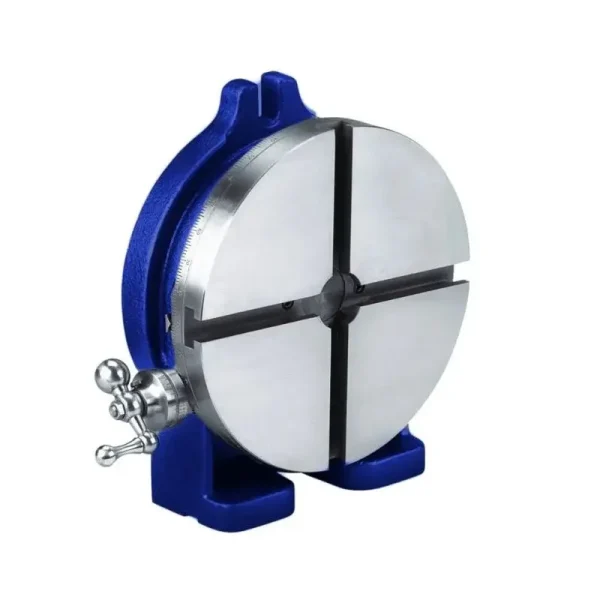

Palmgren Horizontal/Vertical Rotary Table 10In. 9634105

Palmgren’s rotary tables perform a variety of operations. They are very useful for cutting segments or circles, circular slots, cutting irregular-shaped slots as well as other similar operations. There tables permit accurate positioning or work under the machine spindle or for inspection and layout applications.

• Use in either the vertical or horizontal position
• The table top and the vertical and horizontal bases are ground for overall squareness
• Precision ground table top to 0.001 in. total indicator reading
• A 5/8 in. keyway and mounting lugs are provided on both the ­vertical and horizontal mounting surfaces
• Smooth worm gear drive provides positive rotary feed
• Balanced ball crank feed handle does not exceed below the base to eliminate interference with the machine table
• Rotary dial is graduated in 3 minute increments and 1 minute­ ­increments on the vernier
