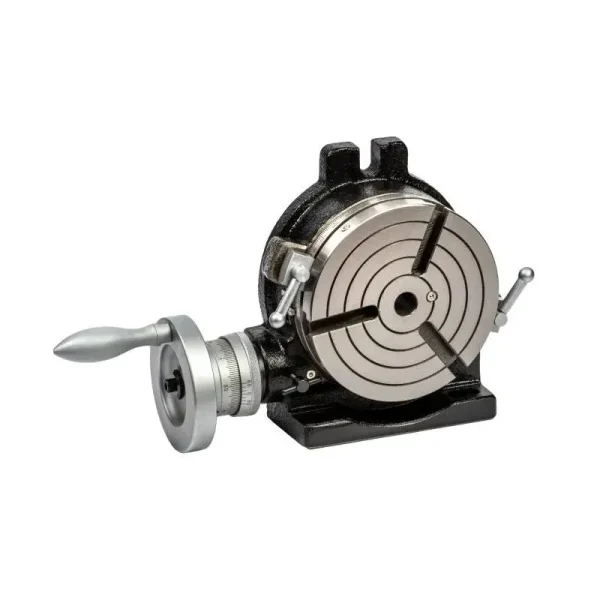

Palmgren 6In. Heavy Duty Rotary Table 9634116

For those more demanding circular cutting and positioning operations, Palmgren 6-inch Heavy Duty Rotary Table is the right choice. These tables permit rapid positioning of work under the ­machine spindle or for inspection and layout applications. Use in either the horizontal or vertical position.

• Low profile dimensions
• The table top and the vertical and horizontal bases are ground for overall squareness
• Gear drive is immersed in oil
• Dual positive action locks
• Hardened and ground worm gear
• The work table is graduated a full 360° – One turn on the handle moves the table 4°
• The micro collar is graduated in steps of 1 minute on the dial and 10 down to 10 seconds on the vernier scale
• Flatness of clamping surface .0006 in. / Parallelism of clamping surface to base .0008 in. / Squareness of clamping surface to angle face .0008 in. / Squareness of clamping surface to center hole .0008 in.
