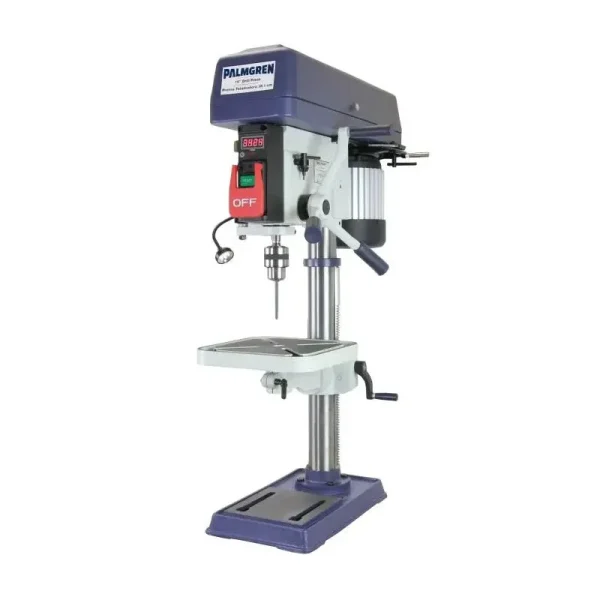

Palmgren 15In. 16- Speed Bench Step Pulley Drill Press 9680157

Original price was: $1,486.99.Current price is: $105.24.

Availability: 5 in stock

🚚 Free Shipping over $38
✓ Premium Quality
🔒 Secure Payments
↻ Money Back Guarantee
SKU: 72260
CATEGORY: Vises & Benches
Description

These Drill Presses have the weight and rigidity to maintain the built-in tight tolerances required for metalworking applications. The oversized, massive drill heads have widely spaced bearing surfaces that provide full quill support throughout its travel. A wider range of operation speeds for drilling both large and small holes.

  • Fully enclosed spindle for accurate drilling operations
  • Maximum spindle run out of 0.0005 in.
  • Extended quill/spindle travel ideal for deep hole applications
  • LED readout of spindle speed
  • Rack and pinion table raiser
  • Precision ground t-slotted work table with coolant trough
  • Table tilts 45° right and left and rotates 360° around the column
  • Quick change vertical depth stop for accurate, repeatable feed length
  • Heavy cast metal 3 spoke quill feed handle with ergonomic speed feed handle
  • Front mounted industrial paddle-type power switch
  • Includes chuck with key and arbor

Specifications

AMPS 8.6/4.3
Capacity Cast Iron 5/8 in.
Country Of Origin CN
Drill Press Model Bench Model
Drill Press Type Step Pulley
Motor HP 1/2
RPM 138 – 3476
Spindle Taper MT2/JT3
Spindle Travel 5 in.
Swing 15 in.
Table Dimensions 11-1/2 in. x 11-1/2 in.
Table Slots 5/8 in.
Voltage 120/240
Warranty 3 Year
UPC 726896801575
Unit Of Measure Each
Product Height (In) 43
Product Length (In) 13.5
Product Width (In) 27
Product Weight (Lbs) 185
*Note: Specifications are approximate and subject to change.
