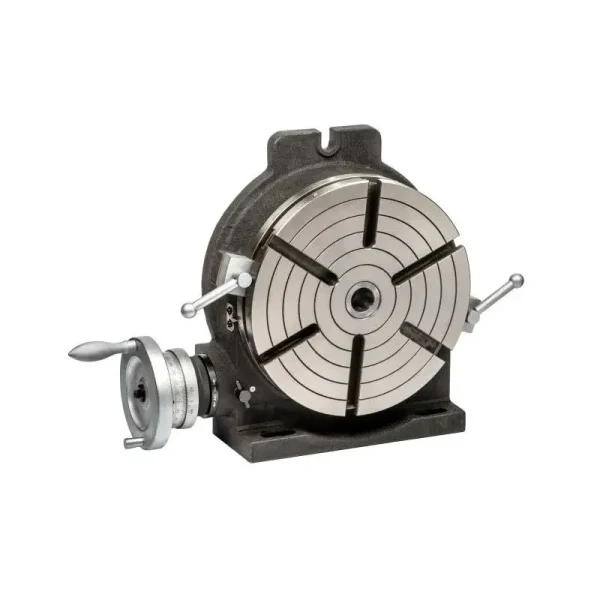

Palmgren 12In. Heavy Duty Rotary Table 9634118

For those more demanding circular cutting and positioning operations, Palmgren’s heavy duty series of rotary indexing tables are the right choice. These tables permit rapid positioning of work under the ­machine spindle or for inspection and layout applications. Use in either the horizontal or vertical position.

• Use in either the horizontal or vertical position
• Low profile dimensions
• The table top and the vertical and horizontal bases are ground for overall squareness
• Gear drive is immersed in oil
• Dual positive action locks
• Hardened and ground worm gear
• The work table is graduated a full 360° – One turn on the handle moves the table 4°
• The micro collar is graduated in steps of 1 minute on the dial and 10 down to 10 seconds on the vernier scale
• Flatness of clamping surface 0006 in. / Parallelism of clamping ­surface to base 0008 in. / Squareness of clamping surface to angle face 0008 in. / Squareness of clamping surface to center hole 0008 in.
