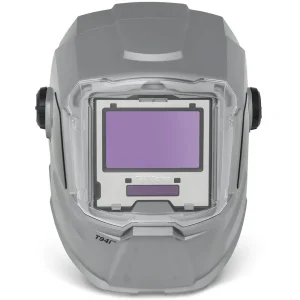

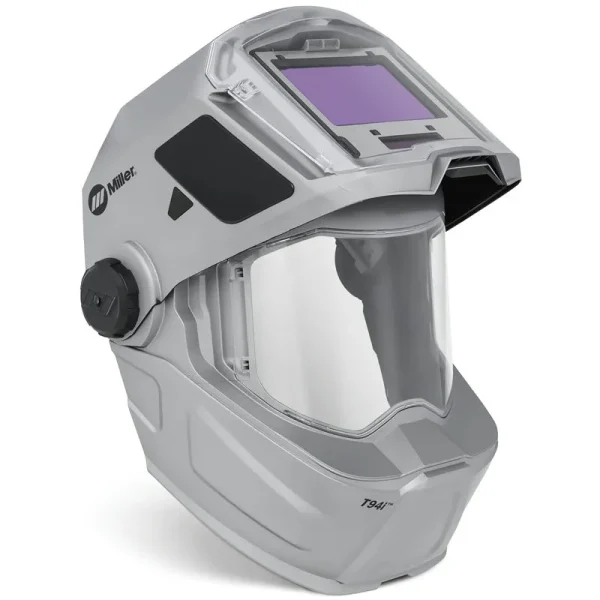

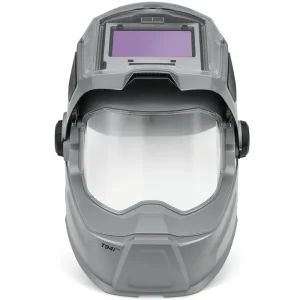

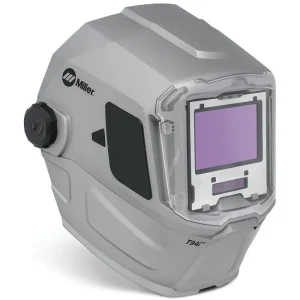

Miller® T94i
ClearLight 4x Auto-Darkening Welding Helmet 296792
Genuine Miller® T94i welding helmet, with ClearLight 4x lens technology and integrated grind shield, features 9.0 square inches of viewing area and offers visual quality that is up to four times better than the minimum USA ANSI standard for 1/1/1/1 rated auto-darkening welding lenses. The stunningly clear views, in both light and dark states, are superior in quality and color to virtually every other auto-darkening lens in the world. High-definition optics and a bright shade 2.5 grind/light state allow you to view your work before, during and after welding – like never before.
The T94i ClearLight 4x lens has four arc sensors and operates in weld, cut, grind and Miller’s X-Mode, which eliminates sunlight interference and low-amp lens flashing from obstructed arc sensors. It is rated for low amperage TIG welding down to 3 amps. Switching speed is a lightning fast 1/25,000 of a second. The Miller T94i ClearLight 4x auto darkening welding hood features shade 8-13 weld mode, shade 8-13 X-Mode, shade 5-8 cut mode and shade 2.5 grind mode. It comes complete with Miller’s Gen. 4 headgear, InfoTrack 2.0, forty four square inch integrated grind shield, easy-to-use digital controls, shade 5.0 side windows and a four year True Blue® lens warranty.
Miller T94i ClearLight 4x Welding Helmet Features
ClearLight 4x lens technology
Provides up to four times the visual quality of the minimum USA ANSI standard for 1/1/1/1 rated auto-darkening welding lenses. Advanced, high-definition optics and a shade 2.5 light state combine for a view that’s clearer and brighter – before, during and after every weld.
Aluminum Heat Shield
Protects the lens by reflecting the heat of higher amperage welding applications.
Quick-release one-piece cover lens with HDV
Simplifies lens changes, reducing downtime. HDV Technology provides a sharp detailed view at any angle with minimal distortion.
Digital Controls With Four Arc Sensors and Four Operating Modes –
Weld Mode Shades #8 – 13
Cut Mode Shades #5 – 8
Grind Mode – Light State Shade #2.5
X-Mode Shades #8 – 13
X-Mode
Electromagnetic Arc Sensing for: Sunlight interference outdoors, Low-Amperage TIG, Pipe/Curves, Obstructed Sensors & Hidden/Cavity Welds
Memory Function
For ease of switching between two preset memory settings.
Half-shade settings
For precise lens adjustment.
InfoTrak 2.0
Exclusive arc tracking technology that monitors arc time and arc count for quoting and worker safety metrics.
Large integrated grind shield with HDV
Provides 44 sq. in. of clear viewing area for grinding and other tasks, increasing helmet-on time and decreasing the potential for eye injuries. HDV Technology provides a sharp detailed view at any angle with minimal distortion.
Auto-on/off
Power control triggers lens at the strike of an arc.
Gen. 4 Headgear
Features ergonomic design that provides extensive adjustment settings, and enhanced support.
T94i Specs
Comes complete with
5 HDV outside cover lenses
2 inside cover lenses
Helmet bag
Four year warranty
