Miller Infinity ClearLight 4x Auto-Darkening Welding Lens 296775

Miller® Digital Infinity ClearLight 4x Auto-Darkening Welding Lens 296775

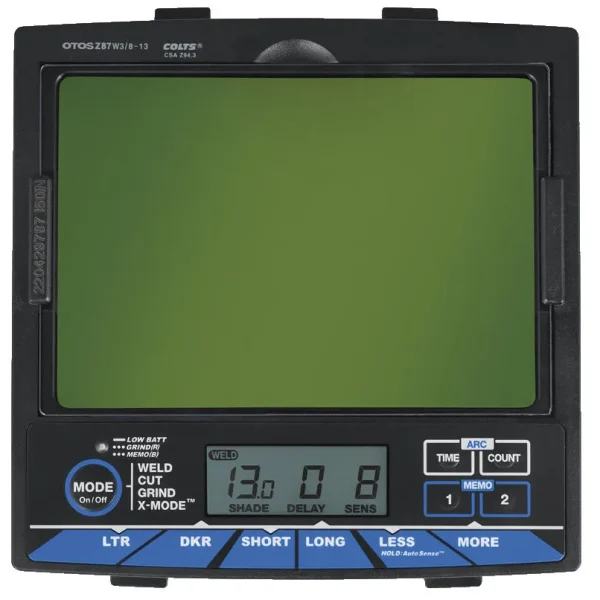

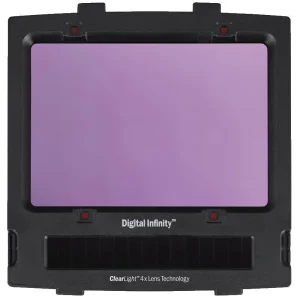

Genuine Miller® replacement ClearLight 4x auto-darkening welding lens for your Miller® Infinity series welding helmet ONLY. The Infinity ClearLight 4x ADF features 13.4 square inches of viewing area and offers visual quality that is up to four times better than the minimum USA ANSI standard for 1/1/1/1 rated auto-darkening welding lenses. The stunningly clear views, in both light and dark states, are superior in quality and color to virtually every other auto-darkening lens in the world. High-definition optics and a bright shade 2.5 grind/light state allow you to view your work before, during and after welding – like never before.

The Digital Infinity ClearLight 4x lens has four arc sensors and operates in weld, cut, grind and Miller’s X-Mode, which eliminates sunlight interference and low-amp lens flashing from obstructed arc sensors. It is rated for low amperage TIG welding down to 5 amps. Switching speed is a lightning fast 1/25,000 of a second. The Miller Digital Infinity ClearLight 4x auto darkening welding filter features shade 8-13 weld mode, shade 8-13 X-Mode, shade 5-8 cut mode and shade 2.5 grind mode. It comes complete with InfoTrack 2.0, AutoSense, easy-to-use digital controls and a four year True Blue® lens warranty.

Miller Digital Infinity ClearLight 4x Replacement Lens Features

ClearLight 4x lens technology
Provides up to four times the visual quality of the minimum USA ANSI standard for 1/1/1/1 rated auto-darkening welding lenses. Advanced, high-definition optics and a shade 2.5 light state combine for a view that’s clearer and brighter – before, during and after every weld.

Backward compatible
Fits all Miller® Infinity series welding hoods and is an outstanding upgrade for all ClearLight and ClearLight 2.0 auto-darkening welding lenses.

Weld Mode Shades #8 – 13

Cut Mode Shades #5 – 8

X-Mode Shades #8 – 13

X-Mode
Electromagnetic Arc Sensing for: Sunlight interference outdoors, Low-Amperage TIG, Pipe/Curves, Obstructed Sensors & Hidden/Cavity Welds

InfoTrak 2.0
Exclusive arc tracking technology that monitors arc time and arc count for quoting and worker safety metrics.

AutoSense
Eliminates issues related to setting helmet sensitivity by allowing the welder to push and hold the AutoSense button to automatically set the helmet sensitivity for their environment.
