Availability: 6 in stock

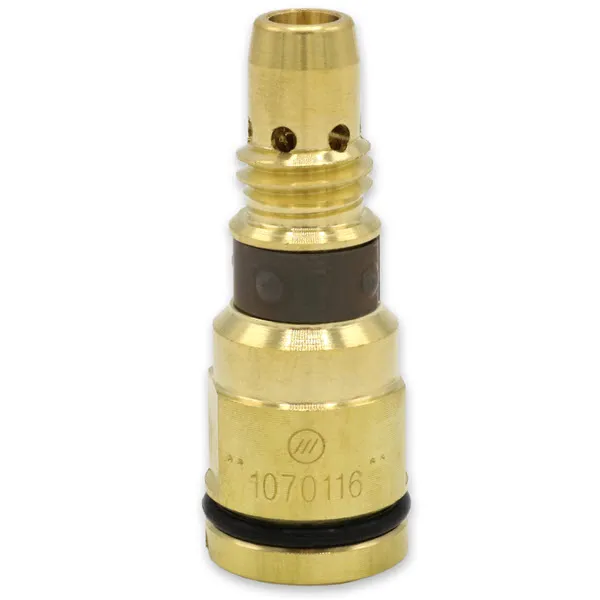

Miller® Diffuser – M-25 MIG Gun to AccuLock
MDX Nozzles & Contact Tips
Package of 2 – Genuine Miller® AccuLock MDX diffusers to adapt your Miller M-25 MIG welding gun to use MDX nozzles and contact tips. The 1070116 diffuser replaces the standard M Series 169728 contact tip adapter and 169729 nozzle adapter and allows you to use new Acculock MDX MIG nozzles and contact tips on your older Miller M-25 MIG gun.
Suitable for use with
How to Install AccuLock Consumables on MIGmatic M-25 MIG Gun:
1. Remove the old contact tip, diffuser, and nozzle.
2. Leave the liner in place. There should also be no need to trim the liner as long as it was trimmed correctly during initial installation.
3. If damaged, the M-25 shock washer (169730) should be replaced with a 4623RM nozzle insulator.
4. Install the new AccuLock diffuser, contact tip and nozzle.
