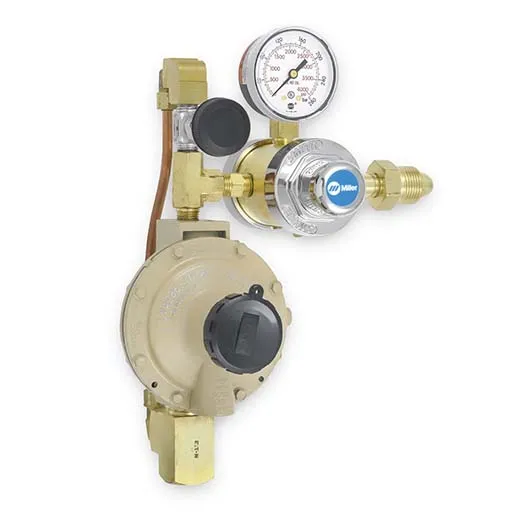

Miller Blanketing Regulator – CGA-580
Three-stage regulator is specially designed to deliver a highly accurate and consistent low-pressure supply of nitrogen to oil-filled power transformers. The regulator will deliver and maintain 0.50 psig in the head space of oil-filled transformers. A built-in self-relieving valve set at 8 psig protects the system from over-pressurization due to temperature variation. Both models come with rapid-fill bypass pressure valve allowing rapid filling of the transformer with 6 psig of pressure.
| Brand | Smith Equipment Co. |
|---|---|
| Body Material | Brass |
| Gas Service | Nitrogen |
| Inlet Connection | CGA-580 |
| Maximum Inlet Pressure | 3000 psi |
| Maximum Outlet Pressure | 0.5 psi |
| Number of Stages | Three |
| Outlet Connection | 1/2 in FNPT |
| Product Type | Blanketing Regulator |
| MFG | 16391 |
