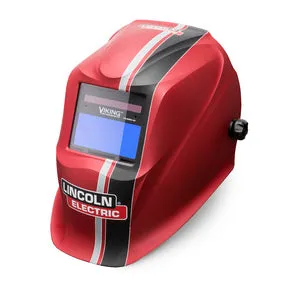

Welding HelmetThere’s no shortage of features on their economically priced 1740 series auto-darkening welding helmet. Available in matte black & graphic finish.
| CARTRIDGE SIZE | 4.33″ x 3.54″ (110 x 90mm) |
| VIEW WINDOW SIZE | 3.78″ x 1.67″ (96 x 42.5 mm) |
| NUMBER OF SENSORS | 2 |
| SHADE CONTROL | Internal |
| VARIABLE WELDING SHADES | DIN 9 to 13 with grind |
| SENSITIVITY CONTROL | Variable Shade, Delay and Light Sensitivity |
| LIGHT TO DARK SWITCHING TIME | 0.00004 sec. (1/25000 sec) |
| DELAY CONTROL (LIGHT TO DARK) | 0.1 sec. min. – 1.0 sec. max |
| TIG RATING | 5 amps |
| COMPLIANCE | Compliance: ANSI Z87.1-2010/CSA Z94.3 |
| OPERATING TEMPERATURE | 14 – 131 deg. F |
| STORAGE TEMPERATURE | -4 – 158 deg. F |
| WEIGHT | 18.6 oz (528 g) |
| OPTICAL CLARITY | 1/1/1/1 (EN 379) |
| PRODUCT NUMBER | PRODUCT NAME |
| KP3283-1 | Lincoln Viking 1740 Inside Clear Cover Lens Kit |
| KP3284-2 | Lincoln Viking 1740 ADF Cartridge Replacement Kit |
| KP4100-1 | Lincoln Ratchet Style Headgear with Sweatband |
| KP2930-1 | Lincoln Viking All Purpose Sweatband Package |
| KP3047-1 | Lincoln Halo Style Hard Hat Adapter |
| KP3043-1 | Lincoln Viking 1740/1840 Series Outside Cover Lens |
| KP3486-1 | Lincoln Viking® Slotted Hard Hat Adapter |
