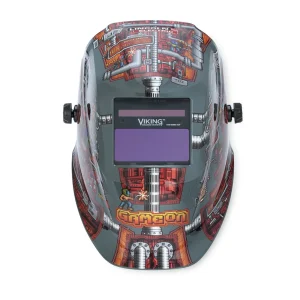

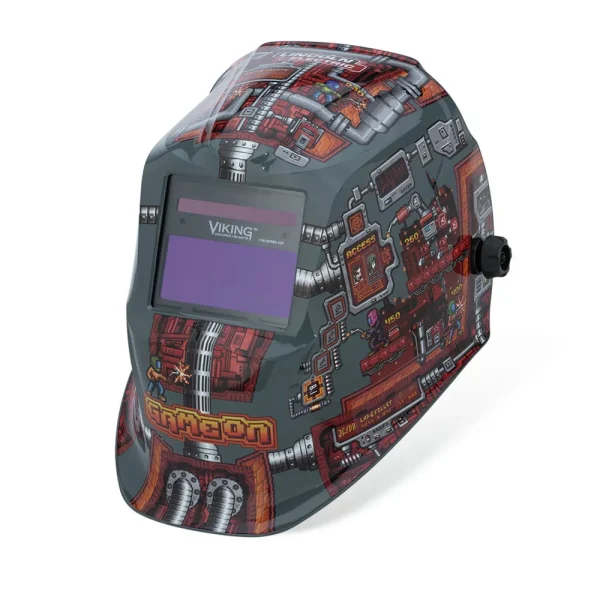

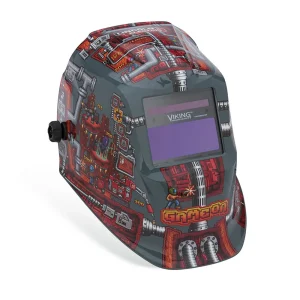

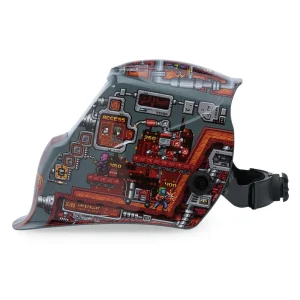

The Lincoln Electric VIKING 1740 series welding helmet provides superior optics, control & versatility and comfort. With 4C® Lens Technology and perfect 1/1/1/1 optical clarity, the lens enhances the visible color spectrum in both light and dark states, which eliminates imperfections. This helmet includes variable 9-13 shades, a grind mode with LED safety indicator, auto on/off functionality, and solar cell with user replaceable AAA batteries. The combined lightweight design and easily adjustable ratchet headgear ensures all-day comfort.
Features
- 4C Lens Technology is Lincoln Electric’s proprietary liquid crystal display (LCD) that enhances the visible color spectrum of the display, which broadens the color range & hues in both light and dark states. This eliminates imperfections and color saturation to create the clearest view of the base material, arc & puddle, while reducing eye strain.
- 1/1/1/1 Optical Clarity that eliminates distortion, removes blurriness, and provides uniform shade & consistent shade at all angles.
- 6.3 sq. inch (3.78 x 1.67 in.) auto-darkening viewing area
- Variable 9-13 Shade with delay and sensitivity controls
- Grind Mode with LED safety indicator
- Lightweight 18.6 oz. (528 g) design
- 3-point pivot headgear with adjustable top head support, soft front headband and large backpad distributes weights and reduces pressure points
- Helmet orientation pin changes the resting position & rotation range of the helmet
What’s Included?
- (1) Welding Helmet, (2) KP3283-1 Inside Cover Lenses, (5) KP3043-1 Outside Cover Lenses, (1) Decal Sheet
Specifications
- Country of Origin : United States
- Warranty Length : 5 Years
- Product Types : Auto-Darkening
- Compliance : ANSI Z87.1
- Product Series : VIKING 1740 Series
- Shell Type : Graphic
- ADF Viewing Area : 3.78 x 1.67 in (96 x 42.5 mm)
- Control Type : Analog
- External Controls : None
- Communication : None
- Headgear Type : Ratchet
- Auto Darkening : Yes
- Cheater Lens Compatible : Yes
- Cut Mode : No
- Flip Up Lens : No
- Grind Mode : Yes
- Hard Hat Capable : Yes
- Lens Shade Rating : 9 – 13
- Light to Dark Switch Time : 1/25000 s
- Magnifying Lens Holder : Yes
- Manufacturer Color/Finish : Game On
- Number of Sensors : 2
- Power Supply : Solar Cell with (2) Replaceable AAA Batteries
- Quick Adjust Ratchet : Yes
- TIG Rating : ≥5 Amps AC/DC
- Welding Shade : Yes
