Jamey Jordan Signature Series Edge Layout Tool

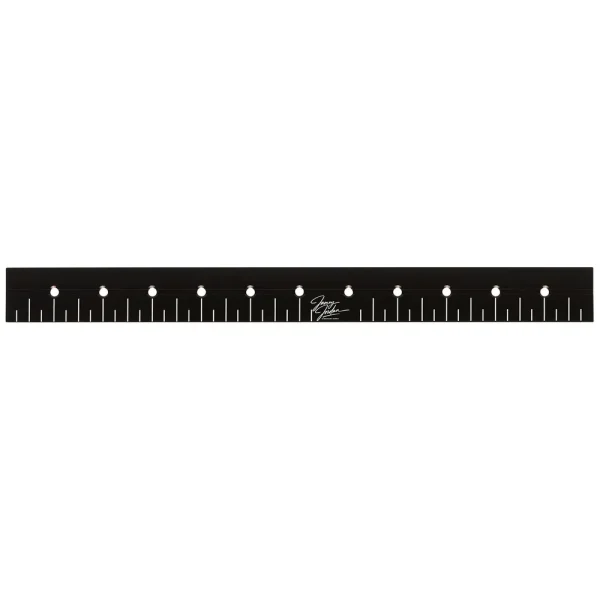

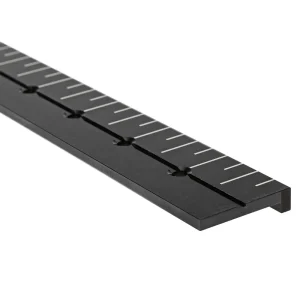

Lay out perfectly straight lines and exact rivet spacing with confidence using the Jamey Jordan Signature Series Edge Layout Tool—designed exclusively for Eastwood. This 12-inch aluminum layout tool features a 1/8-inch-thick lower lip that hugs the edge of your material, ensuring precise alignment every time. With a ruler edge marked in ¼-inch increments and eleven holes spaced an inch apart and a ½-inch from each edge, it’s ideal for accurately marking or drilling rivet pilot holes.

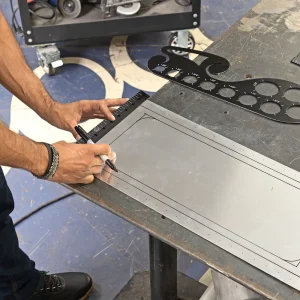

An offset center channel on the top face provides a visual reference for the lower lip, helping you stay aligned as you work. Designed for sheet metal projects where accuracy matters—whether fabricating patch panels, aircraft skins, or decorative work—it can also be used with Clecos during the layout phase.

Rigid, reliable, and machined from anodized aluminum, this tool delivers professional-grade precision in every pass.
