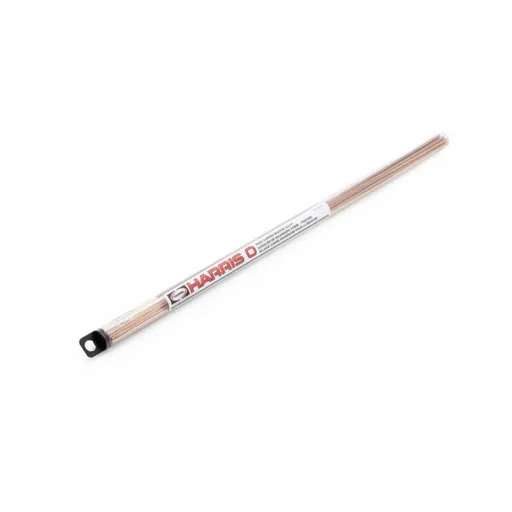

Harris 0 Phos-Copper Brazing Alloy, 0.050 x 1/8 in, 1 Lb Tube
Harris 0 phos-copper brazing alloy 0.050 x 1/8 x 20 in. x 1 ea. 28 stick tube
Harris 0 phos-copper brazing filler metal is a low cost alloy use for many copper-to-copper applications where moderate fit-up can be maintained and brazing temperature is not critical. Complies with the EU Reach & RoHS directive.
Features
- Economical choice for copper brazing
- Copper is self-fluxing, so no manual flux application is required
- Alloy flows quickly at brazing temperature requiring close joint tolerance, less than 0.005 in. (0.13 mm)
- Primarily used in manual brazing applications
- Suitable for brazing brass
- When brazing brass, operators should avoid over heating and use Stay Silv white brazing flux
- Not recommended for brazing steel or other ferrous base metals
- Corrosion resistance is generally similar to the copper base metal, but phosphorus containing alloys, including Harris 0, should not be used if the braze is exposed to sulfur or sulfur compounds in service
- Recommended joint clearance of 0.002 in. – 0.005 in. (0.05 mm – 0.13 mm)
- Complies with the EU Reach & RoHS directive
