Availability: 8 in stock

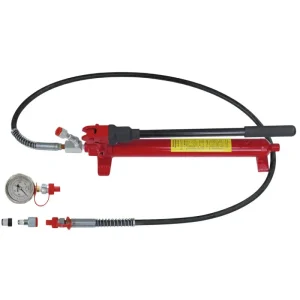

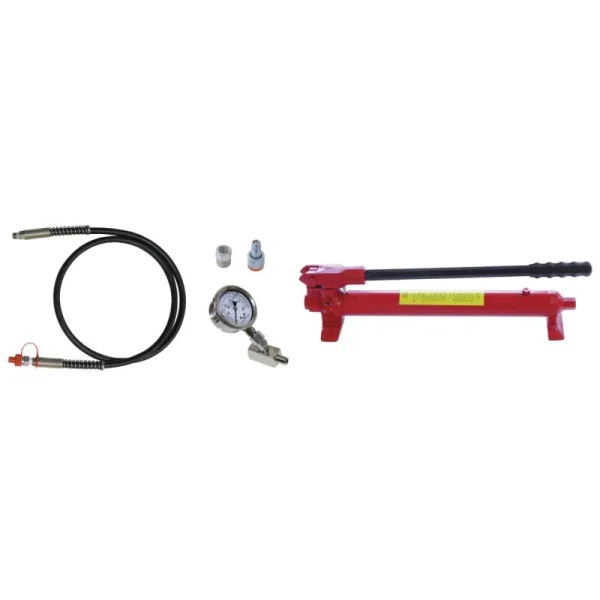

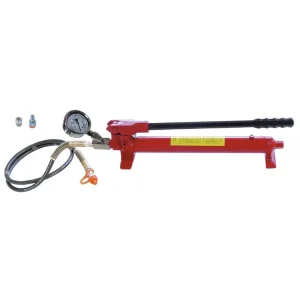

The hydraulic hand pump can be used as a drive for the hydraulic cylinders KL-0040-2500 or KL-0040-1700. The ton scale allows to check the hydraulic pressure and the required power during the work
| Port Size | 3/8 in NPT |
| Overall Length | 29.5 in |
| Overall Width | 6.3 in |
| Overall Height | 6.3 in |
| Connection Size | 3/8 in |
| Item | Hydraulic Hand Pump |
| Number of Stages | 2 |
| Max. Pressure 1st Stage | 200 psi |
| Max. Pressure 2nd Stage | 10,000 psi |
| Max. Handle Effort | 34 lb |
| Displacement per Stroke 1st Stage | 0.2 cu in |
| Displacement per Stroke 2nd Stage | 0.2 cu in |
| Reservoir Capacity | 33 cu in |
| Handle Material | Plastic |
| Pump Material | Steel |
| Oil Included | Yes |
| Reservoir Material | Steel |
| Includes | Oil |
| Housing Material | Steel |
| Handle Effort – Maximum | 34 lb |
| Pressure 1st Stage – Maximum | 200 psi |
| Pressure 2nd Stage – Maximum | 10,000 psi |
| Connection Type | NPT |
