Availability: 6 in stock
Q4 PLATINUM
– GXPC HVLP Spray System
The Q PLATINUM
series features many new technological advancements. Incorporated into its design is a proprietary Heat Dissipation Box (HDB). The HDB expels excess heat from the Turbine resulting in much cooler operating temperatures. Less heat translates to longer motor life for your Turbine. Because the hot air is routed to the rear of the Turbine and passes through 60 holes the process is silent. The Q4 PLATINUM
Turbine Spray System is the quietest 4-stage HVLP Turbine on the market. Using patented noise reduction in conjunction with its new PLATINUM

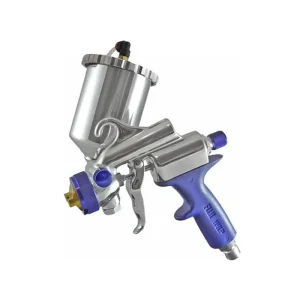

features, noise levels have been reduced to less than 50 percent of standard HVLP Turbines. All other specifications are identical to the Mini-Mite 4 Model. Supplied with the new Fuji GXPC Non-bleed Spray Gun with Pattern Control Knob – the fan size is adjustable from small to large and everything in between (fully incremental). The benefit of Non-bleed is that air only passes through the Spray Gun when the trigger is pulled resulting in less blowing around of shop dust and less paint buildup on the tip of the fluid nozzle. Obtain a professional finish with all known coatings. The Spray Gun included with this package is the GXPC with 400cc Cup. The standard Air Cap set is the general purpose #4 (1.4 mm) for fine finishing with lacquers, enamels, polyurethanes, latex, water based coatings and more. Easy to maintain. Perfect for professional or beginner. This is an industrial-rated machine at an unbeatable price. Heavy-duty metal case with Gun Holder. Portable and powerful. Complete system includes the Q4 PLATINUM

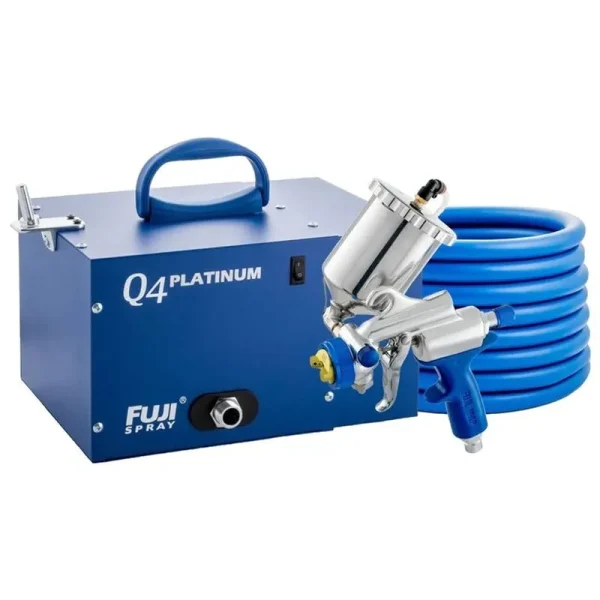

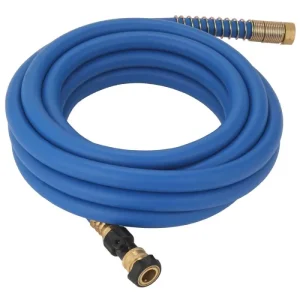

Quiet Turbine, 25ft hi-flex hose, GXPC Non-bleed Spray Gun with 400cc Cup, viscosity Cup, cleaning brush, wrench and 20 page user manual.
Turbine featuring the Heat Dissipation Box
| Paint Sprayers | HVLP Sprayer |
| Spray Gun | GXPC |
| Spray Gun Type (Gravity, Siphon, convertible) | Gravity Feed |
| Cup Capacity | 400cc Aluminum |
| Air Cap | 1.4mm |
| Air Filters | Single #5029 |
| Hi-Flex Hose | 25-ft (7.6m) |
| Turbine/Motor Type | 4-Stage |
| Maximum Hose Length | Hi-Flex Hose 50 ft |
| Heat Dissipation Chambers | Yes |
| Voltage – Hz | 110-120 volts ~ 60Hz/220-240 volts ~ 50Hz |
| Amps | 13 (110-120) 6.5 (220-240) |
| Maximum Pressure Rating (psi) | 9 PSI |
| Power Type | Electric |
| Variable Speed Control Dial | NA |
| Bonus 5 for 5 | NA |
| DBA | 59 |
| High Transfer Efficiency | minimum of 65% TE |
| Turbine Dimensions | 14.87 in. x 11.5 in. x 9 in. |
| Weight | 31.2lbs |
