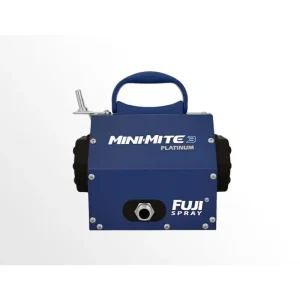

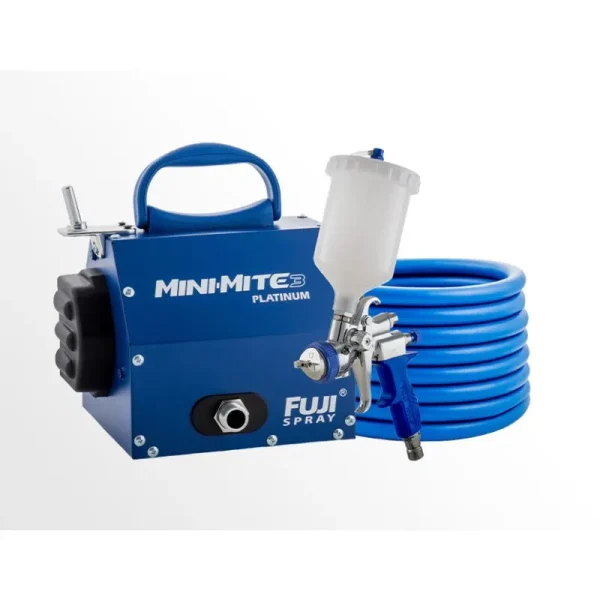

Fuji Spray Mini-Mite 3 PLATINUM – T-70 System 2903-T70

Mini-Mite 3 PLATINUM HVLP Spray System with T-Model Bottom Feed Spray Gun. The Mini-Mite 3 PLATINUM HVLP spray system features a powerful 3-stage PLATINUM turbine system and non-bleed spray gun with Side-Mounted Pattern Control – allows for easy adjustments to the size of the fan width from a small 2 inch circle to a 12 inch wide oval-shaped pattern.

Key Features:

• Heat Dissipation Chamber
• Noise Reduction Covers
• Air control valve
• High-efficiency aircap for even less overspray
• Rugged all-metal turbine case
• Quick-change friction-fit turbine filter
• 2-year warranty on all parts and labour

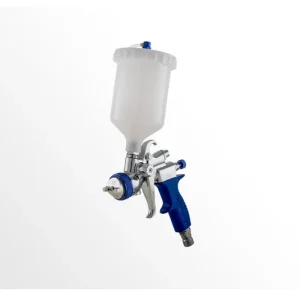

This system comes with the T-70spray gun featuring the Side-Mounted Pattern Control, a bottom feed 1Qt cup, and is installed with a 1.3mm aircap set.

• WEIGHT: 27.8lb / 12.61kg
• DIMENSIONS :16.5 x 14 x 15.5 inches / 42 x 35.5 x 38.5 cm

The Fuji Spray Heat Dissipation Chamber. Fuji Spray has designed a unique method of removing any heat build up from the Turbine case. Excess heat is channeled to a Heat Dissipation Chamber located at the rear of the case. Fuji Spray Noise Reduction Covers. The Mini-Mite PLATINUM turbines are equipped with a method to reduce noise. The Noise Reduction Covers house the filters.

Important: The Mini-Mite PLATINUM series turbines have different size filters to the other Mini-Mite Turbines. These Mini-Mite PLATINUM filters (7224-2) are available in a 2-pack and are semi-circle shaped, rather than square. The Mini-Mite 3PLATINUM HVLP Spray System can work with any of our non-bleed turbine spray guns – choice of 3 different: T-70 Bottom Feed, T-75G Gravity Feed, or G-XPC Gravity Feed.
