Home › Auto Body & Paint › Automotive Paint › Fuji Spray H-V8 Spray Gun – 1.4mm – 600cc Aluminum Cup 6863G-H-V8-A
Automotive Paint

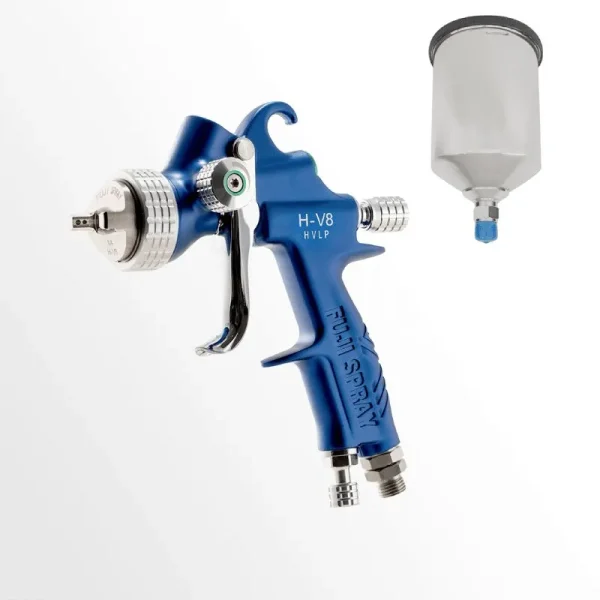

Fuji Spray H-V8 Spray Gun – 1.4mm – 600cc Aluminum Cup 6863G-H-V8-A

Original price was: $479.00.Current price is: $107.52.

Availability: 6 in stock

🚚 Free Shipping over $38
✓ Premium Quality
🔒 Secure Payments
↻ Money Back Guarantee
SKU: 69858
CATEGORY: Automotive Paint
Description

Best suited for base and clear coat applications, the H-V8™ features a precise side-mounted fan pattern control. The H-V8™ has few internal components, forged aluminum spray gun body with anodized fluid passages, and an optimized HVLP air cap resulting in a soft spray pattern.

  • Side-mounted fan pattern control
  • Forged aluminum gun body with anodized internals
  • For use with waterborne or solvent-based coatings in high production facilities
  • Optimized HVLP air cap for soft spray pattern
  • Fewer internal components for easy maintenance
  • Tip sizes ranging from 1.2 to 2.2 mm

Specifications

AIR CAP SETS AVAILABLE (IN MM): 1.2; 1.3; 1.4; 1.7; 2.0; 2.2
OPERATING RANGE: 9-28 PSI
AIR INLET SIZE: 1/4 in. BSP AND NPS
AIR SUPPLY HOSE: 6.5 X 10 MM
AIR CONSUMPTION: 14.7 CFM
FLUID COUPLER (GRAVITY): 3/8 in. PF
STANDARD AIR CAP SET: 1.4 MM
GUN WEIGHT (WITHOUT CUP): 521 G (18.38 OZ)
APPLICATION TYPE: WATERBORNE AND SOLVENT-BORNE CLEAR COAT APPLICATION
MAX. FAN WIDTH: 325 MM
*Note: Specifications are approximate and subject to change.
