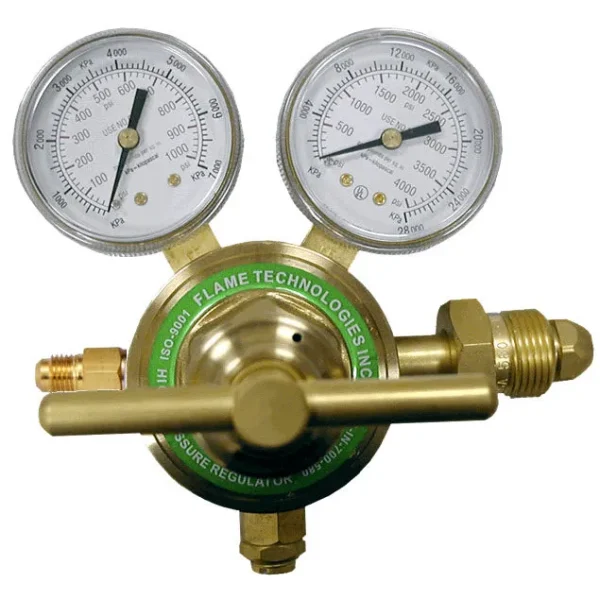

Flame Tech High Pressure Nitrogen Regulator HPPR-IN-700-580

Flame Tech® High Pressure Nitrogen Regulator HPPR-IN-700-580

The Flame Tech® HPPR-IN-700-580 is a high pressure inert gas regulator that delivers up to 700 PSIG working pressure. It is designed for high pressure testing/charging applications where nitrogen or argon gas is being used. The piston-style design ensures consistent, accurate delivery pressure. This industrial gas regulator features solid brass body, bonnet and “T” pressure adjustment screw. Large 2 inch gauges display tank pressure, working pressure and have sturdy acrylic screw-on lenses. The inlet features sintered metal filter to prevent impurities from entering the regulator.

This Flame Tech inert gas regulator has a maximum inlet pressure of 3,000 PSIG and a working pressure range from 50-700 PSIG.

Suitable for use with

Nitrogen
Argon
Helium

Specs
