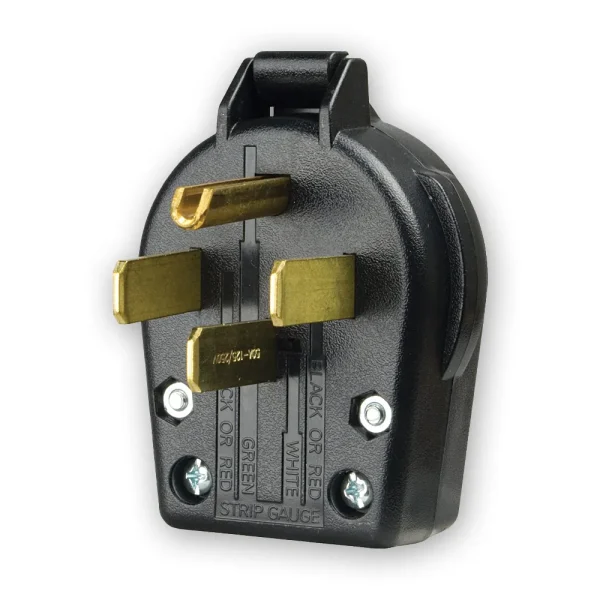

Designed for heavy-duty applications, this universal NEMA power plug from Crouse-Hinds is a robust solution for both commercial and industrial settings. With a durable thermoplastic body and brass contacts, it ensures reliable performance under demanding conditions, accommodating wire sizes from #10 to #4 AWG. The plug features a three-pole, four-wire configuration with a voltage rating of 125/250 V and is compatible with NEMA configurations 14-30P and 14-50P, making it versatile for various uses. Its back wire design and pressure plates provide enhanced protection for the wires, ensuring safety and longevity in your electrical connections.
Specifications
- Special Features : Pressure plates to protect wires
- Color : Black
- Device Type : Plug
- Face/Body Material : Durable thermoplastic
- Wiring Method : Back wire
- Material : Thermoplastic
- Allowable Wire Size : #10-4 AWG
- Amperage Rating : 30 A/50 A
- Number Of Poles : Three-pole
- Contact Material : Brass
- Type : Replacement use
- Device Grade : Commercial specification
- Nema Configuration : 14-30P, 14-50P
- Style Type : Power, Universal angled body
- Design Type : Straight blade
- Connection Type : Screw
- Number Of Wires : Four-wire
- Receptacle Type : Three-pole, four-wire, grounding
- Voltage Rating : 125/250 V
- Application : Commercial
General
- UPC : 032664517839
- Product Length/Depth : 2.63 IN
- Product Height : 8.5 IN
- Product Width : 6 IN
- Product Weight : .455 LB
- Warranty : Refer to warranty document.
- Certifications : UL Listed
