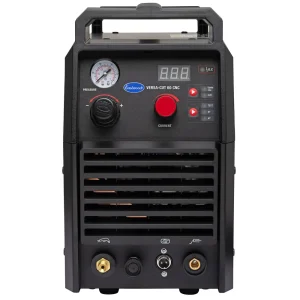

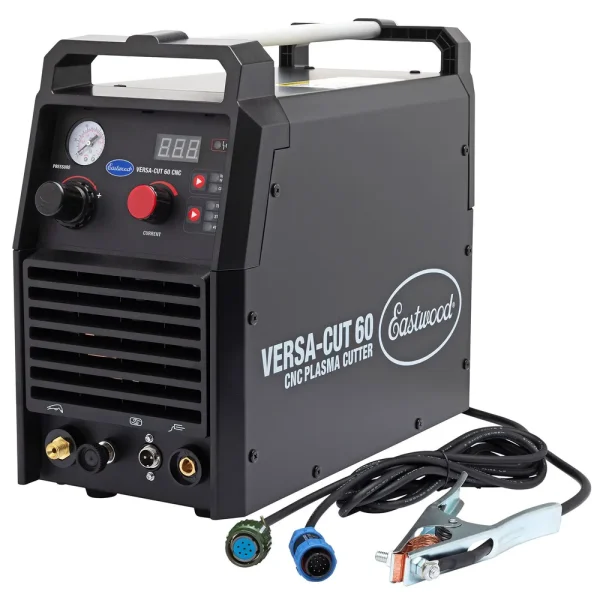

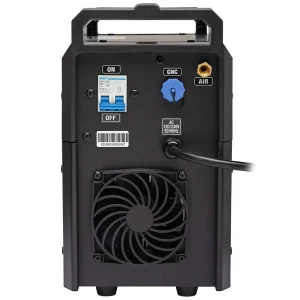

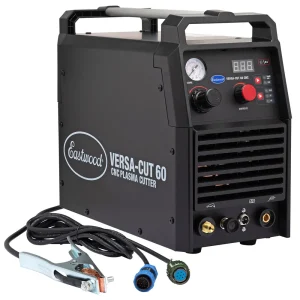

The Eastwood Versa-Cut 60 CNC Plasma Cutter is the best solution for making clean, fast cuts through steel, stainless or aluminum as thin as 24-gauge, or as thick as 7/8” using a hand torch while adding CNC operation features and functionality. Compared to our standard Versa-Cut 60 with high frequency start, the Versa-Cut 60 CNC features a blowback pilot arc to minimize the possibility of interference. Additionally, the rear mounted 12-pin plug is ideal for hardwiring dedicated CNC plasma table controls with or without a height controller. Dual voltage capability allows the versatility to plasma cut with 120V household outlets and receptacles, or full 240V power when available. Compatible with Eastwood Versa-Cut CNC tables, simply pair with optional Machine Torch (#66723) and HD Consumables Kit (#73829) for the best experience CNC plasma cutting thick plate.
Eastwood CNC Plasma Cut 60 Features:
Specifications
Input Voltage: 240V±10% VAC, 50/60 Hz, 1 Phase / 120V±10% VAC, 50/60 Hz, 1 Phase
No Load Voltage:339V
Rated Input Current (I1max / I1eff): (240V) 44.5A / 34.5A – (120V) 39.4A / 30.5A
Output Current Adjustment: (240V) 20A (88V) – 60A (104V) – (120V) 20A (88V) – 30A (92V)
Rated Duty Cycle: (240V) 60% @ 60A, 100% @ 46A – (120V) 60% @ 30A, 100% @ 23A
Starting Method: Blowback (Low frequency)
Air Requirements: 5 – 7 CFM @ 60 psi
Maximum Material Thickness – Hand Cut: 7/8″
Maximum Material Thickness – CNC Table: 3/8″ clean cut (1/2″ severance cut)
Overall Dimensions: 17.01″ x 8.46″ x 14.68″ (432 x 215 x 373mm)
Weight 30.6 lbs. (13.9kg)
