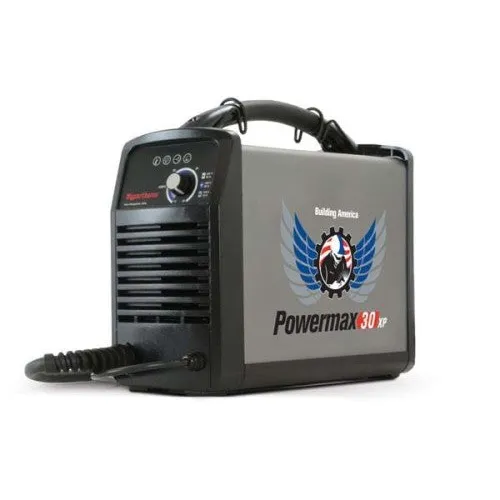

Powermax30 XP system, 120-240V 1-PH, CSA, plus 75° torch w/consumables, 4.5m (15′) lead, American built edition w/case
Specifications
- Gasses:Air (Clean | Dry | Oil-Free), F5, Nitrogen
- Certification Models:CSA
- Duty Cycles 40C:20% @ 30 A, 120 V, 35% @ 30 A, 240 V
- Frequencies:50-60 Hz
- Industries:Agriculture, Artwork, Signs & Ornamentation, Automotive, Construction, Energy, HVAC, Mechanical Contractors, Metal Fabricators, Mining, Pipe & Pipelines, Pressure vessel/tank fabricators, Shipbuilding, Steel Service Centers, Structural Steel, Transportation
- Ingress Protection:IP23S
- Input Currents:25.5/18.8 A
- Input Current Watts:3.8 kW
- Input Voltages:120-240 V
- Input Volts And Amps:120-240 V, 25.5/18.8 A
- Materials:Aluminum, Mild Steel, Stainless Steel
- Max Output Currents:30 A
- Min Output Currents:15 A
- Motor Gen For Full Arc:6.8 kVA or 5.5 kW
- Open Circuit V Ocv:240 VDC
- Phases:1-PH
- Platforms:Handheld
- Power Cable Lengths:3m (10′)
- Power Supply Types:Inverter – IGBT
- Ps Dimen Incl Handle:356 x 140 x 305 mm (14.0 x 5.5 x 12.0″)
- Rated Output V Vdc:125 VDC
- Rec Cut Capacity Fast:10 mm (3/8″) @ 500 mm/min (20 ipm)
- Rec Cut Capacity Slow:12 mm (1/2″) @ 250 mm/min (10 ipm)
- Rec Flow For Cutting:113.3 l/min or 240 scfh (4 scfm) @ 80 psi (5.5 bar)
- Remote Pendants:No
- Severance Capacities:16 mm (5/8″) @ 125 mm/min (5 ipm)
- Technologies:Plasma
- Torch Angles:75⁰
- Torch Lead Lengths:4.5 m (15′)
- Work Cables:Yes
- Weight:17.69 lbs
