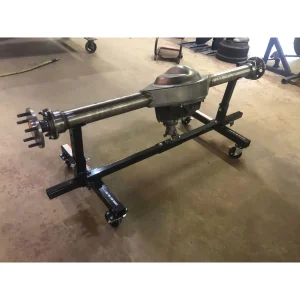

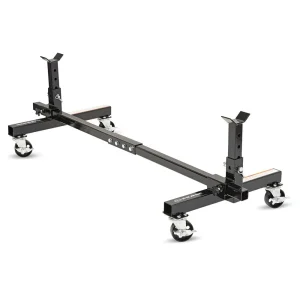

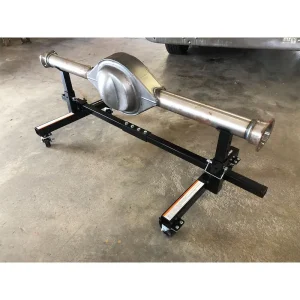

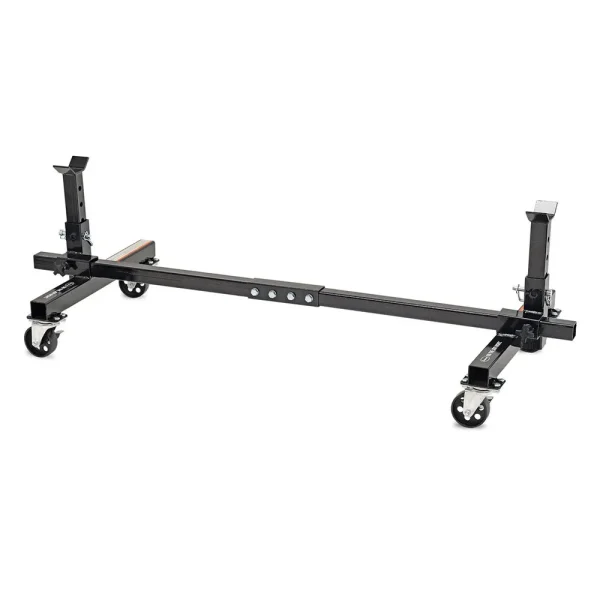

The Eastwood Solid Axle and Frame Dolly features an all-steel support structure and steel swivel casters to support up to a total loaded weight of 1500 lbs. [680kg.] yet is completely portable for rolling axle and suspension assemblies to and from the project, or into storage. A generous 16” to 60” [0.40m – 1.54m] span adjustment will accommodate larger axle and suspension assemblies. When used as a pair, these dollies can support a full-size car or truck frame during restoration and then easily be rolled aside.
Use the Eastwood body cart for the body and two of these for the frame so you can easily move your project around when you are ready to work on it.
| Maximum Weight Capacity: | 1500lb [680kg] |
| Overall Clearance Height: | (Support Cradles at lowest position) 12″ |
| Overall Extended Height: | (Support Cradles at highest position) 19″ |
| Overall Extension Range: | 16″ to 60″ |
| Overall Depth: | 23.5″ |
| Tubing Size: | 1-1/2″ Square Steel Tube |
| Dolly Finish: | Black Powdercoat (RAL9005) |
| Casters: | 3.5″ x 30mm Metal Wheel, Swivel, Locking, Plate Style |
Meets ASME 2014 Standards
