Availability: 10 in stock

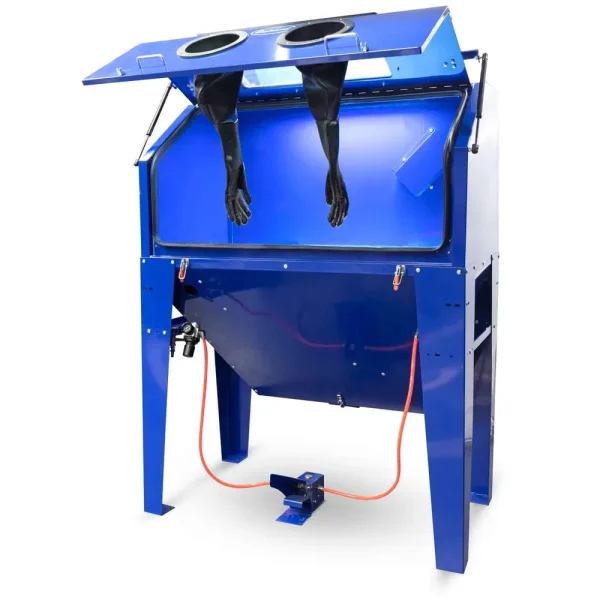

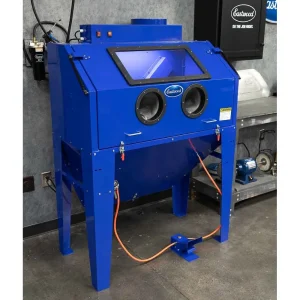

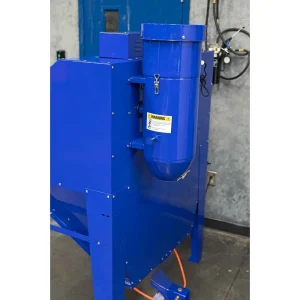

The Eastwood B100 Blast Cabinet is the largest blast cabinet that we offer. It truly has the size of an industrial blast cabinet that will handle any job that you can fit into it. A large 343L work area that measures 48″ x 24″ x 24″ will give you the room you need to blast full wheels, engine blocks, transfer cases and more. Plus a dust collector to improve visibility and performance.

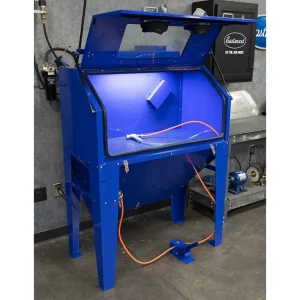

The Eastwood Abrasive Media Blast Cabinet – B100 is constructed of heavy gauge steel with a quality powder coated finish for maximum durability and trouble-free service. It features a high-intensity dual-tube fluorescent work lamp for increased visibility and a baffled, flow-through ventilation design with an included integrated, high capacity vacuum unit, all in a compact, space saving configuration. The unique clam shell front opening design provides much greater ease and safety with a low lift-over height when blasting larger or heavier items.
| Includes (3) 6mm Nozzles – 1 Installed in Gun | |
| External Dimensions | 48-3/8″w x 35-1/2″d x 66-1/2″h |
| Internal Working Space | 45-3/4″w x 22-3/4″d x 22-3/4″h (12.1 cu. ft.) |
| Window Viewing Area | 22 inches x 10.5 inches |
| Air Requirement | 6-10CFM Optimal, Max 12CFM @ 90 PSI |
| Electrical Requirement (lamp) | Grounded 120 VAC, 60hz, 15 amp |
| Cabinet Material – 16 Gauge Panels, 14 Gauge Legs | |
| 100% Powder Coat Finish | |
| Overall Weight 275lbs | |
| Maximum Weight Capacity | 220lbs. [100 kgs.] |
| Maximum Media Capacity | 150lbs. |
| Dust Collector Included | |
