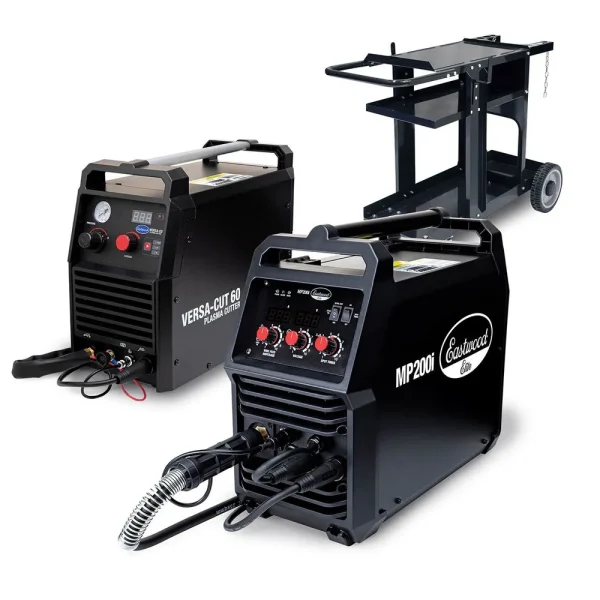

Eastwood 200 Amp Multi-Process Welder and 60 Amp Versa-Cut Plasma Cutter plus Welding Cart

Name: Eastwood 200 Amp Multi-Process Welder and 60 Amp Versa-Cut Plasma Cutter plus Welding Cart
Brand: Eastwood
SKU: 98026
Price: 103.68 USD
Availability: InStock

Availability: 8 in stock

🚚 Free Shipping over $38

✓ Premium Quality

🔒 Secure Payments

↻ Money Back Guarantee

SKU: 98026

CATEGORY: Plasma Cutters

Description

BIG SAVINGS with the MP200i, Cut 60 and Cart!

This multi-process welder from the Eastwood Elite series is designed to do it all. It includes pro-grade torches for MIG, TIG and stick welding that use common consumables. The 200-amp output is enough to weld up to 3/8-in. thick steel, and with an you can weld aluminum, too!

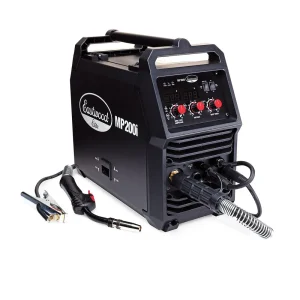

The Eastwood Elite MP200i Multi Process Welder Features:

MIG, Stick or TIG Weld
Latest IGBT Inverter Technology
120 VAC or 230 VAC Input Voltage
200-amp maximum welding output
40% Duty Cycle @ 90A 120 VAC
20% Duty Cycle @ 200A 230 VAC
Welds up to 3/8-in. thick steel
Built-in Spot Weld Timer

MIG and Flux Core Welding

TIG Welding

Stick (ARC) Welding

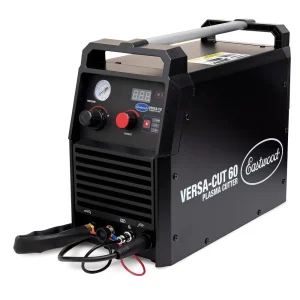

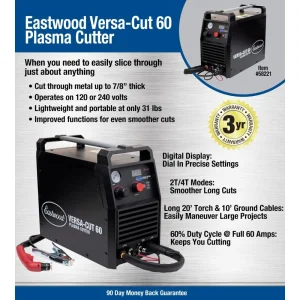

The Eastwood Versa-Cut 60 Plasma Cutter Features:

120 or 240 Volts AC input
Cuts thin sheet metal to thick 7/8-in. thick plate (cuts 3/16-in. on 120 VAC)
Digital amperage readout for increased precision
Long 20-ft. torch cable and 10-ft. ground cable with clamp
Rated 60 amp output on 240 VAC; 30 amp on 120 VAC
Lightweight and Portable – only 31 lb!
2T/4T Torch Mode for smoother long cuts
Durable Duty Cycle of 60% @ 60 amps on 240v and 60% @ 30 amps on 120v
Uses common consumables that are available at Eastwood or most welding supply stores
Backed by Eastwood’s no-hassle 3-year warranty
Due to the High Frequency start feature, we do not recommend using this machine on a CNC plasma table.

The Eastwood MIG-TIG-Plasma Cart Features:

Top shelf holds a welder
The bottom shelf holds a Versa Cut Plasma Cutter
The middle shelf of the welding cart allows storage of necessary welding accessories
The Gas Bottle Mount incorporates a TIG Rod Holder to store up to 6 different tubes of filler rods
The design of the top shelf allows for the side access door on the MIG’s to be opened without taking the welder off the cart
Heavy duty front castor wheels
Molded Heavy Duty Rear Wheels
Satin Black Powder coated finish
Cut out in rear to allow plasma cutter cable routing through the rear of the cart
Holds up to an 12

(1) – MP200i Dual-Voltage, Multi-Process Welder
(1) – Adapter Cord, 12 Ga., 3-ft. [0.91m], 120Volt 30 Amp Plug/NEMA 50R Receptacle
(1) – Shielding Gas Regulator
(1) – Shielding Gas Hose, 4.6-ft. [1.4m]
(1) – Ground Clamp with 10-ft. [3m] Cable
(1) – Trafimet ERGOPLUS 24, Tweeco Style MIG Torch. 10-ft. Length. (0 .030-in./0.8mm contact tip installed)
(5) – Spare 0.030 Contact Tips
(1) – Electrode Holder with 12.5-ft. [3.8m] Cable
(1) – WP-17v TIG Torch with 10-ft. [3m] cable, 14-ft. [4.3m] Gas Line
(1) – #4 Gas Nozzle (1/4-in.)
(1) – #5 Gas Nozzle (5/16-in.)
(1) – #6 Gas Nozzle (3/8-in.) (Installed)
(1) – Short Black Cap (Installed)
(1) – Long Black Cap
(1) – Collet Body, 1/8-in. [3.2mm] (Installed)
(1) – Collet, 1/16-in. [1.6mm] (Installed)
(1) – Collet, 1/16-in. [1.0mm]
(1) – Collet, 1/16-in. [2.0mm]
(1) – 1/16-in. x 6-in. Tungsten (Gray)
(1) – Welding Wire Spool, 2lb., 0.030-in. Solid Wire
(5) – Welding Rods, 1/8-in. E6013

for welding aluminum is optional and not included. A foot pedal for TIG welding cannot be connected to this unit. It utilizes the torch trigger for TIG welding.

Versa-Cut 60 Amp Plasma Cutter
(1) Trafimet CB70 Torch and 20-ft. Supply Line
(1) 10-ft. Ground Lead and Clamp
(1) NEMA5-15P to NEMA 6-50R, 20-ft. (240v to 120v Cable)
(1) Torch Flow Tester
(1) Electrode Wrench
(1) Replacement Electrode
(1) Replacement Nozzle
(1) Instruction Manual
Welding Cart with Hardware and Instructions

Always where eye, hand and face protection when cutting.

MP200i Specifications

Input power:	VAC 120-230
Frequency:	50/60 Hz
Rated input current:	20 Amps 120 VAC – 36 Amps 230 VAC
Rated working voltage:	18.5 volts @ 120 VAC – 24 volts @ 230 VAC
MIG welding current:	30-90 A @ 120 VAC \| 30-200 A @ 230 VAC
TIG welding current:	20-90 A @ 120 VAC \| 20-200 A @ 230 VAC
Stick welding current:	30-70 A @ 120 VAC \| 30-170 A @ 230 VAC
Rated duty cycle:	120 VAC 40% @ 90A – 230 VAC 20% @ 200A
Weight:	34 lb

Versa Cut 60 Specifications
Input:	240 VAC and 120 VAC, 50/60 Hz, 1 Ph
Rated Input Current 120 VAC:	39.4 Amps
Rated Input Current 240 VAC:	44.5 Amps
Output Current Adjustment 120 VAC:	20 – 30 Amps
Output Current Adjustment 240 VAC:	20 – 60 Amps Amps
Output Voltage on 120 VAC:	88V – 92V
Output Voltage on 240 VAC:	88V – 104V
Power Cord Receptacle Plug:	NEMA 6-50P
Power Cord Length:	6-ft.
Output:	60 Amps
Duty Cycle: on 120 VAC:	60% @ 30 Amps and 100% @ 23 Amps
Duty Cycle: on 240 VAC:	60% @ 60 Amps and 100% @ 46 Amps
Torch:	Trafimet CB70
Torch Tip:	0.1mm
Max Cut:	7/8-in. on 240 VAC; 3/16-in. on 120 VAC
Air Compressor Requirements:	5-7 cfm @ 20 – 60 psi
Torch Cable Length:	20-ft.
Ground Cable Length and Gauge:	10-ft. long, 5 gauge wire
Cooling Method:	Fan
Air Connection Thread:	1/4-in. NPT
Unit Dimensions:	17.01-in. Long X 14.69-in. Tall X 8.46-in. Wide
Unit Weight:	31 lb

Welding Cart Specifications
Total Height	26-in.
Total Width	16-in.
Total Length (not including Handle)	32-in.
Total Length (including Handle)	38-in.
Top Shelf	11.75-in. W x 20-in. L
Middle Shelf	11.75-in. W x 15-in. L
Bottom Shelf	11.75-in. W x 17.5-in. L
Maximum Weight Capacity	350 lb

*Note: Specifications are approximate and subject to change.

bvseo_sdk, p_sdk, 3.2.1
CLOUD, getReviews, 3.53ms
REVIEWS, PRODUCT
bvseo-msg: HTTP status code of 404 was returned; HTTP status code of 404 was returned;

Is the versa cut 60 a high or low frequency start? I am trying to find a cutter compatible with arc droid.

Asked by: Sean

This versa-cut unit is a high frequency start.

Answered by: Max S

Date published: 2025-04-15

can i add a foot petal to my tig on this machine: Eastwood 200 Amp Multi-Process Welder and 60 Amp Versa-Cut Plasma Cutter plus Welding Cart.and if so how do we do that.never tiged before .

Asked by: emo miranda

As stated in the web description: 20645 Spool Gun for welding aluminum is optional and not included. A foot pedal for TIG welding cannot be connected to this unit. It utilizes the torch trigger for TIG welding.

Answered by: Wil Tech Support

Date published: 2025-02-13

Will this welder accept a spool gun to mig weld aluminum?

Asked by: Richard

Yes the spool gun needed is the Eastwood MP140i MP200i Spool Gun, 20645

Answered by: James Project Advisor

Date published: 2025-08-19

Is this unit "too much" for a car project?

Asked by: Shawnte
