Availability: 8 in stock

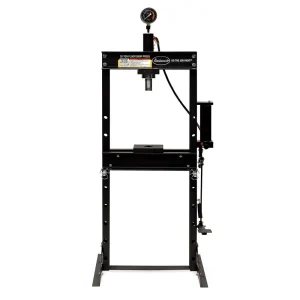

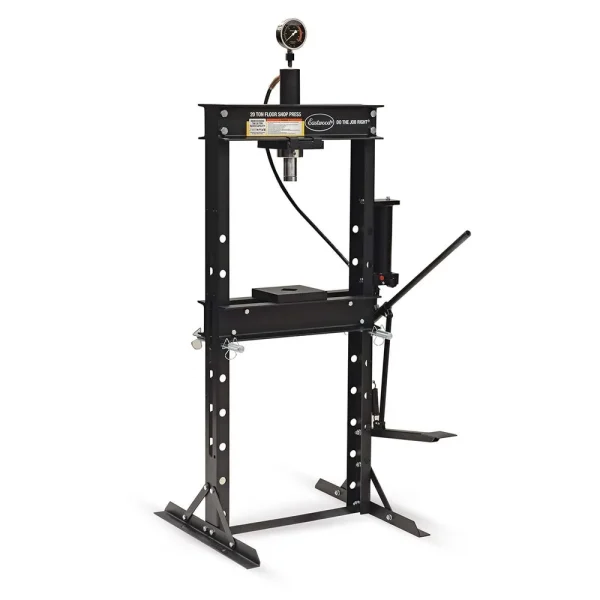

The Eastwood 20 Ton Hydraulic Bench Press is excellent for many mechanical procedures requiring a strong linear pressing force for disassembly or assembly operations.
This Bench Press has a generous 7-1/4” Ram Stroke and adjustable 2.3 to 40” vertical working range can easily accommodate many ball joint, u-joint, bearing, bushing and gear pressing projects. The convenient Foot Pedal feature provides a choice of hands-free, foot actuated operation or the standard, hand operation pump function.
This Eastwood 20 Ton Shop Press ships in two boxes. Both boxes will be shown in your shopping cart and are needed to assemble a complete press.
| Hydraulic Pump Capacity: | 20 Tons (40,000 lbs.), [18,144 kg] maximum |
| Hydraulic Ram Stroke: | 7.25″ [185 mm] |
| Vertical Working Range: | 2.3 to 40″ [58 – 1016mm] |
| Arbor Depth: | 4″ [101 mm] |
| Arbor Width: | 21.25″ (540mm) |
| Force Gauge units: | 0-30 U.S. Tons, 0-28 Metric Tons |
| Ram Size: | 48mm |
| Workpiece Plate Construction: | 30mm Steel, Black Powdercoat |
| Frame Construction: | 5mm Welded Steel, Black Powdercoat |
| Workpiece Support Pins Construction: | 18mm Steel, Zinc Plated |
| Hydraulic Pump: | Includes Foot Pedal and Handle |
