Availability: 8 in stock

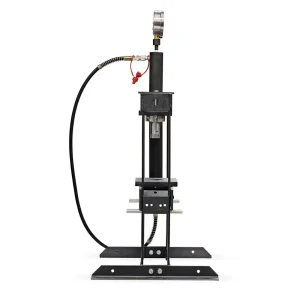

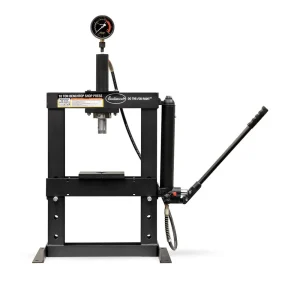

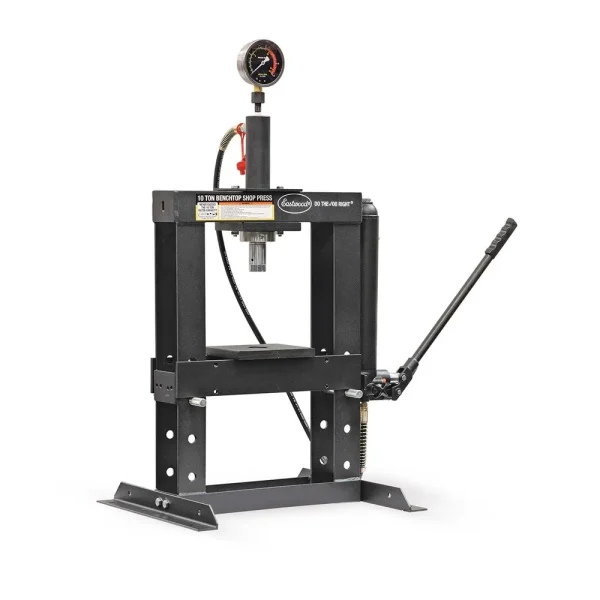

The Eastwood 10 Ton Hydraulic Bench Press is excellent for many mechanical procedures requiring a strong linear pressing force for disassembly or assembly operations.
This Bench Press has a generous 6.88” Ram Stroke and adjustable 4.3 to 14.3” vertical working range can easily accommodate many ball joint, u-joint, bearing, bushing and gear pressing projects.
| Hydraulic Pump Capacity: | 10 Tons (20,000 lbs.), [9071 kg] maximum |
| Hydraulic Ram Stroke: | 6.88″ [175 mm] |
| Vertical Working Range: | 4.3 to 14.3 [109-363mm] |
| Arbor Depth: | 4.33″. [110mm] |
| Horizontal Working Capacity: | 4.31″ x 13.38″. [110mm x 340mm] |

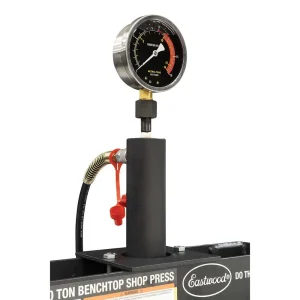

| Force Gauge units: | 0-18 U.S. Tons, 0-16 Metric Tons |
| Ram Size: | 40mm |
| Workpiece Plate Construction: | 20mm Steel, Black Powdercoat |
| Frame Construction: | 7mm Welded Steel, Black Powdercoat |
| Workpiece Support Pins Construction: | 18mm Steel, Zinc Plated |
