Availability: 10 in stock

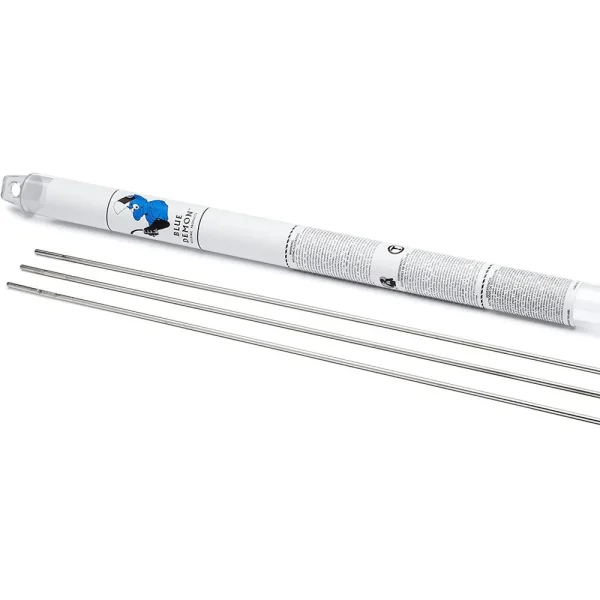

ERTi-2 (Commercially pure) Titanium is a TIG, MIG and submerged arc filler metal used for welding commercial pure titanium alloys commonly found in applications requiring high temperature resistance and resistance to chemical reagents. Although there are four grades of Commercial Pure Titanium filler metals, C.P. Grade 2 (ERTi-2) is the most popular because of its good balance of strength, formability and weldability. The most common applications of ERTi-2 are the aircraft industry, where tensile strength and weight ratios are very critical. Other uses would include cryogenic and petrochemical applications such as chemical process heat exchangers, pressure vessels and piping systems, pulp bleaching systems, electrochemical and chemical storage tanks.
| AWS Class: | ERTi-2 |
| Alloy: | ERTi-2 |
| Certification: | AWS A5.16/A5.16M:2007 |
| ASME: | SFA A5.16 |
| Welding Current | DCEP |
| Tensile Strength, kpsi: | 50 |
| Yield Strength, kpsi: | 40 |
| Elongation %: | 20 |
Typical Wire Chemistry as per AWS A5.16 (single values are maximum)
| C | O | N | H | Fe |
| 0.03 | 0.08-0.16 | 0.015 | 0.008 | 0.12 |
| Typical Welding Parameters | |||||
| Diameter | Process | Volt | Amps | Shielding Gas | |
| in | (mm) | ||||
| 1/16 | (1.6) | GTAW | 16 | 180 | 100% Argon |
| 3/32 | (2.4) | GTAW | 17 | 190 | 100% Argon |
| 1/8 | (3.2) | GTAW | 19 | 205 | 100% Argon |
