Baileigh Manually Powered Ring and Angle Roll Bending Machine R-M7 1006861

Original price was: $959.00.Current price is: $114.31.

Availability: 10 in stock

🚚 Free Shipping over $38
✓ Premium Quality
🔒 Secure Payments
↻ Money Back Guarantee
SKU: 62650
CATEGORY: Hand Tools
Description

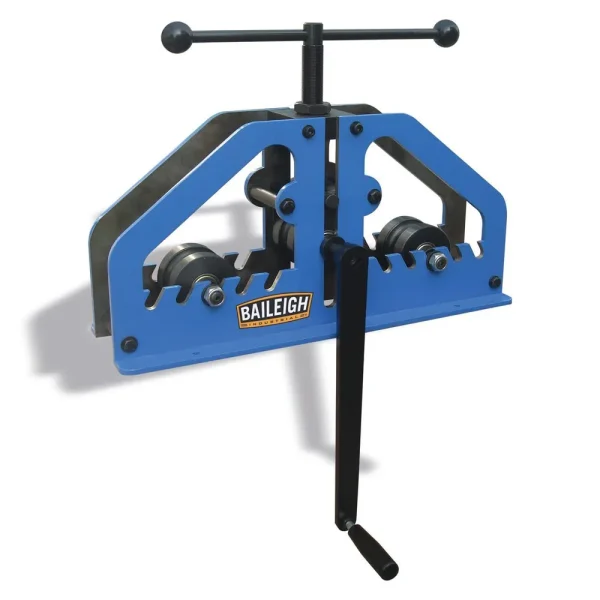

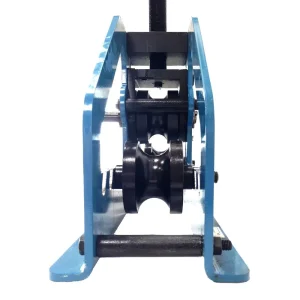

The portable R-M7 is built from quality steel (unlike most competing roll benders in this price range) and can bend tube and pipe to large radii.

  • Bends 1.5″ pipe to a minimum radius of 20″ and 2″ round tube to a minimum radius of 60″
  • Manual crank makes quick work of large radius bends
  • Shafts turn on precision ball bearings for the smoothest possible operation
  • Many different tooling options enable the machine to tackle a wide range of projects
  • Takes up little space and will easily fit into even the smallest shops

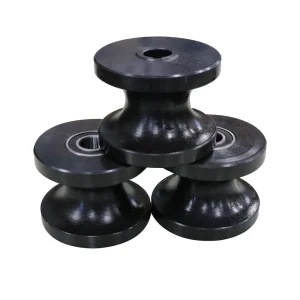

  • Includes a set of 1-1/2″ OD tube dies
  • This tubing roller is covered with a 1-year parts warranty

Specifications

Roll Adjustment: Manual
Pipe Capacity: Size: 1.5″ / Min. Radius: 20″
Round Tube Capacity: Size: 2″ / Min. Radius: 60″
Shaft Center Distance: Adj. (lower rolls)
Rectangle Capacity: Size: 1 x 2″ / Min. Radius.: 10″
Pinch: Single
Capacity Flat Bar: Size: 1.25″ / Min. Radius.: 10″
Power: Manual
Shipping Weight: 83lbs
Material Type: All Specs based on 60,000 PSI (42 Kg/mm 2) Tensile Strength – Mild Steel.
*Optional Tooling: Some applications may require optional tooling. Please contact a Technical Sales Specialist at Baileigh Industrial with specific application details.
Shipping Dimensions (Inches): 26x10x19
*Note: Specifications are approximate and subject to change.
